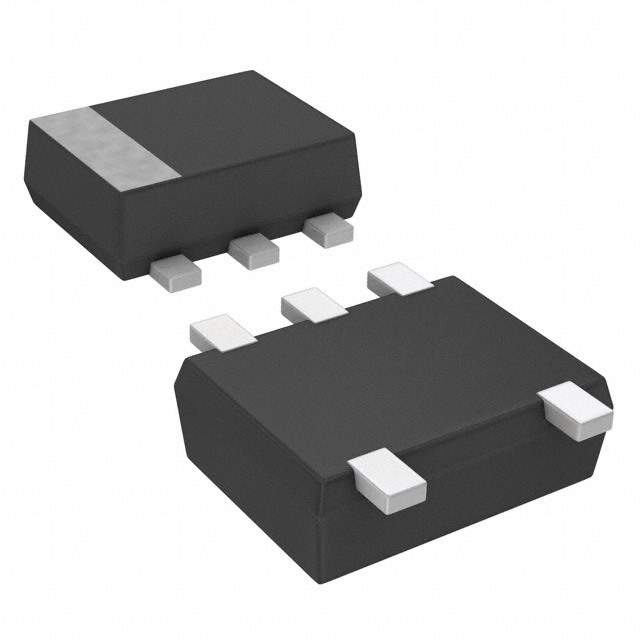

UP0339000L Real Image
Same model may have multiple batches, images only for reference.

UP0339000L

Part No UP0339000L
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS NPN/PNP SSMINI5
Datasheet
UP0339000L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity 1 NPN, 1 PNP - Pre-Biased (Dual)
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 47k, 10k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 80 @ 5mA, 10V
Max Vce (sat) 250mV @ 300μA, 10mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 150MHz, 80MHz
Maximum Power Dissipation 125mW
Mounting SMD (SMT)
Case / Package SSMini5-F2
Win Source Part Number 1116487-UP0339000L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UP0339000L CAD Model

Description

The UP0339000L is a dual pre-biased NPN and PNP transistor that is designed to provide excellent performance in a wide range of applications.

  • Configuration: Dual, Pre-Biased NPN and PNP
  • Frequency Transition: 150MHz (NPN), 80MHz (PNP)
  • Mounting: SMD (SMT)
  • Maximum Collector Current: 100mA
  • VCEO: 50V (Max)
  • Maximum Power Dissipation: 125mW
  • hFE (Min): 80 @ 5mA, 10V
