Same model may have multiple batches, images only for reference.

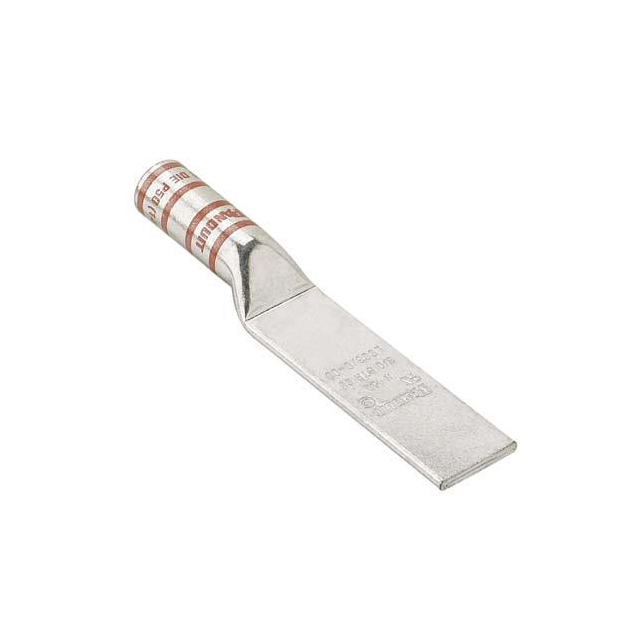

LCC4-00-L Real Image
Same model may have multiple batches, images only for reference.

LCC4-00-L

Part No LCC4-00-L
Manufacturer Panduit Corp
Catalog Rectangular Connectors
Description CONN TERM RECT TONG 2-4 AWG / Lug Terminal 2AWG Copper 102.4mm Tin
Datasheet
LCC4-00-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Series Pan-Lug
Packaging Bulk
Terminal Type Rectangular Tongue
Terminal Style No Stud Hole
Tab Thickness 0.070" (1.78mm)
Length - Overall 4.030" (102.36mm)
Width - Outer Edges 0.750" (19.05mm)
Mounting Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 2-4 AWG
Insulation Non-Insulated
Color Gray
Contact Finish Electro-Tin
Contact Material Copper
Diameter - Barrel ID 0.280" (7.11mm)
Diameter - Barrel OD 0.380" (9.65mm)
Win Source Part Number 770971-LCC4-00-L
Popularity Medium
Supply and Demand Status Balance
Family Name LCC4
Introduction Date December 16, 2004
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian LCC4-00-L CAD Model

Description

The Panduit Corp LCC4-00-L is a non-insulated terminal used in various applications. It is a part of the Pan-Lug series and is a reliable component that can be used in various electronic devices.

  • Terminal Type: Rectangular
  • Contact Material: Copper
  • Wire Gauge: 2-4 AWG
  • Contact Finish: Electro-Tin
  • Mounting: Free Hanging (In-Line)
  • Terminal Style: No Stud Hole
  • Outer Edge Width: 0.750"
  • Overall Length: 4.030"
  • Barrel ID: 0.280"
  • Barrel OD: 0.380"
