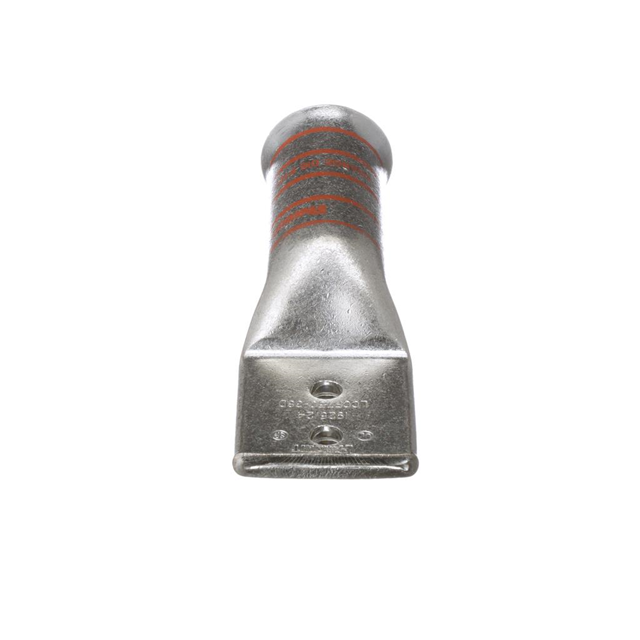

LCCF750-38D-3 Real Image
Same model may have multiple batches, images only for reference.

LCCF750-38D-3

Part No LCCF750-38D-3
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT TONG 750 MCM #3/8
Datasheet
LCCF750-38D-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Packaging Bulk
Status Active
Terminal Type Rectangular Tongue
Stud/Tab Size 3/8 Stud
Terminal Style Two Stud Holes
Tab Thickness 0.320" (8.13mm)
Length - Overall 6.350" (161.29mm)
Width - Outer Edges 2.170" (55.12mm)
Mounting Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 750 MCM (kcmil)
Insulation Non-Insulated
Color Orange
Contact Finish Electro-Tin
Diameter - Barrel ID 1.170" (29.72mm)
Diameter - Barrel OD 1.800" (45.72mm)
Diameter - Ring ID 0.410" (10.41mm)
Win Source Part Number 1029080-LCCF750-38D-3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LCCF750-38D-3 CAD Model

Description

The 1029080-LCCF750-38D-3 is a non-insulated connector manufactured by Panduit Corp.

  • Termination: Crimp and barrel
  • Contact Finish: Electro-tin
  • Wire Gauge: 750 MCM (kcmil)
  • Mounting: Free hanging (in-line)
  • Terminal Type: Rectangular tongue
  • Stud/Tab Size: 3/8 stud
  • Width of the Outer Edges: 2.170 inches (55.12mm)
  • Length Overall: 6.350 inches (161.29mm)
  • Tab Thickness: 0.320 inches (8.13mm)
  • Diameter of the Barrel ID: 1.170 inches (29.72mm)
  • Diameter of the Barrel OD: 1.800 inches (45.72mm)
  • Diameter of the Ring ID: 0.410 inches (10.41mm)
