Same model may have multiple batches, images only for reference.

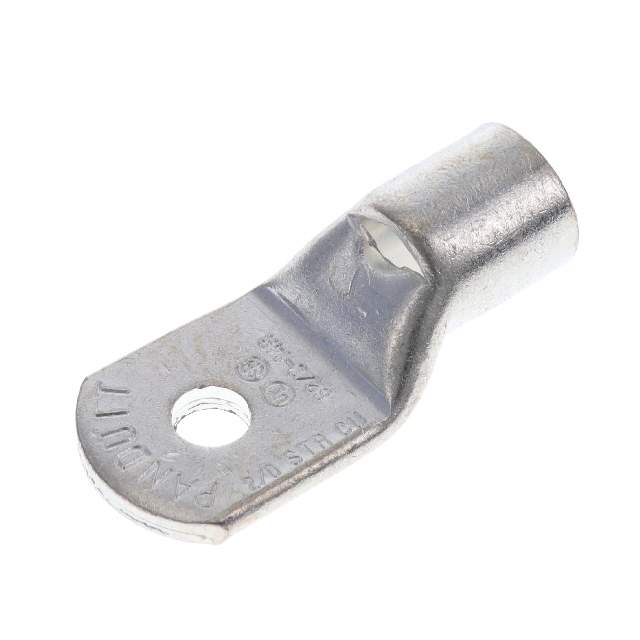

S2/0-14R-X Real Image
Same model may have multiple batches, images only for reference.

S2/0-14R-X

Part No S2/0-14R-X
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S2/0-14R-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/4 Stud
Thickness 0.130" (3.30mm)
Width - Outer Edges 0.850" (21.59mm)
Length - Overall 2.100" (53.34mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 2/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S2/0
Other Names S2/0-14R-X,298-23442
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285177-S2/0-14R-X
Ultra Librarian 3D Model Ultra Librarian S2/0-14R-X CAD Model

Description

The Panduit Corp Pan-Term® ring connector is a high-quality connector designed for use in a variety of applications.

  • Insulation: Non-insulated
  • Termination: Crimping mechanism
  • Opening: Funnel opening
  • Contact Finish: Tin
  • Contact Material: Copper
  • Wire: Accommodate 2/0 AWG wire
  • Stud/Tab Size: 1/4 inch
  • Terminal Type: Flat-sided
  • Thickness: 0.130 inches
  • Mounting: Free-hanging (in-line)
  • Package: Bulk
  • Width: 0.850 inches
  • Length: 2.100 inches
