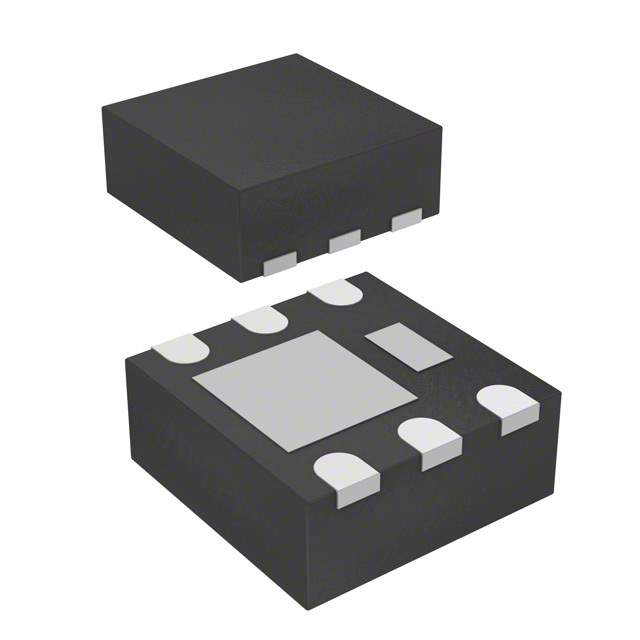

PJQ2815_R1_00001

Name: PJQ2815_R1_00001
Brand: Panjit
SKU: 1085303
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PJQ2815_R1_00001
Manufacturer	Panjit
Catalog	Transistors - FETs, MOSFETs - RF
Description	DFN2020-6L, MOSFET / Mosfet Array 2 P-Channel (Dual) 20V 4.2A (Ta) 1.5W (Ta) Surface Mount DFN2020-6L
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr	Panjit International Inc.
Package	Tape & Reel
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.2A (Ta)
Rds On (Max) @ Id, Vgs	52mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	907pF @ 10V
Power - Max	1.5W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	DFN2020-6L
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	3757-PJQ2815_R1_00001CT,3757-PJQ2815_R1_00001TR,3757-PJQ2815_R1_00001DKR
Standard Package	3,000
Win Source Part Number	1085303-PJQ2815_R1_00001
Ultra Librarian 3D Model	Ultra Librarian PJQ2815_R1_00001 CAD Model

Alternative Products

Description

The PJQ2815_R1_00001 dual P-channel MOSFET array from Panjit is designed for use in discrete semiconductor products.

Drain to Source Voltage: 20V
Continuous Drain Current: 4.2A @ 25°C
Maximum On-Resistance: 52mOhm @ 4.2A and 4.5V gate to source voltage
Package: 6-VDFN exposed pad
Maximum Power Dissipation: 1.5W @ ambient temperature
Gate Charge: 24nC @ 4.5V
Input Capacitance: 907pF @ 10V drain to source voltage
Temperature Range: -55°C to 150°C
ECCN: EAR99 compliant
