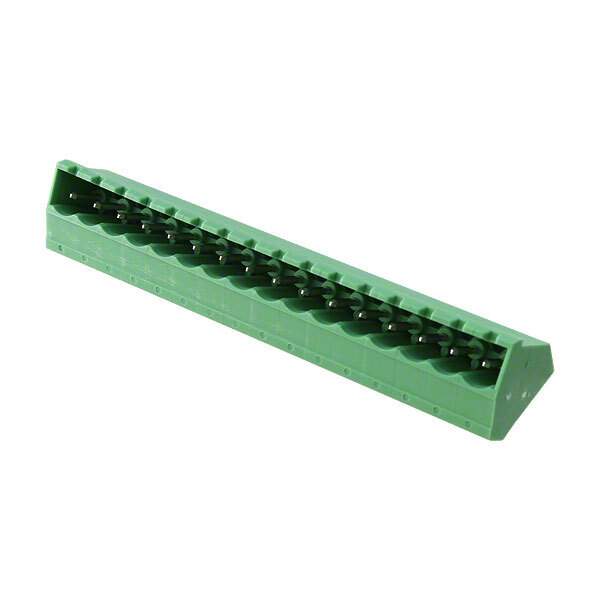

1767517

Part No 1767517
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 16POS 5.08MM / 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON SMSTBA
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 16
Positions Per Level 16
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 45°
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material -
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.583" (14.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 50 pcs
Win Source Part Number 1380572-1767517
Ultra Librarian 3D Model Ultra Librarian 1767517 CAD Model

Description

The COMBICON SMSTBA series is a set of male header connectors designed for use in electronic applications.

  • Series: COMBICON SMSTBA
  • Positions per Level: 16
  • Pitch: 0.200" (5.08mm)
  • Type: Shrouded on all four sides
  • Current Rating (IEC): 12A
  • Current Rating (UL): 15A
  • Voltage (IEC): Up to 630V
  • Voltage (UL): Up to 300V
  • Material: Polyamide (PA) and Nylon
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Insulation Height: 0.583" (14.80mm)
  • Contact Mating Finish: Tin
  • Package: Bulk
