Same model may have multiple batches, images only for reference.

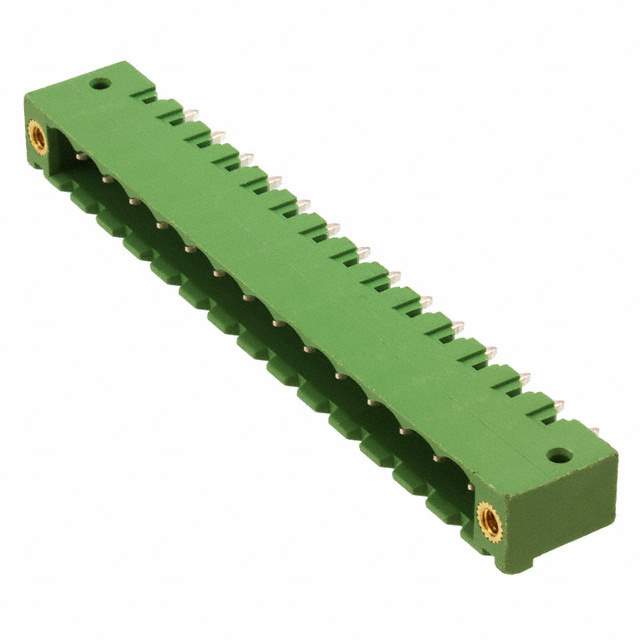

1777196 Real Image
Same model may have multiple batches, images only for reference.

1777196

Part No 1777196
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 14POS VERT 5.08MM / 14 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Datasheet
1777196 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Positions Per Level 14
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 12 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.472" (12.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MSTBV 2,5/14-GF-5,08,MSTBV2,5/14-GF-5,08,1777196-ND,277-6453
Standard Package 50
Win Source Part Number 1332330-1777196
Ultra Librarian 3D Model Ultra Librarian 1777196 CAD Model

Description

The Phoenix Contact 1332330-1777196 is a bulk-packaged, vertical header with male pins.

  • Positions per Level: 14
  • Pitch: 0.200 inches (5.08mm)
  • Shrouded: 4 Side
  • Termination Style: Solder
  • Current Rating: 12A (IEC and UL)
  • Voltage Rating: 630V (IEC) and 300V (UL)
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Mating and Mounting Flange: Yes
  • Contact Mating Finish: Tin
  • Insulation Height: 0.472 inches (12.00mm)
  • Contact Tail Length: 0.154 inches (3.90mm)
  • Mounting: Through-Hole
  • Standard Package: 50
