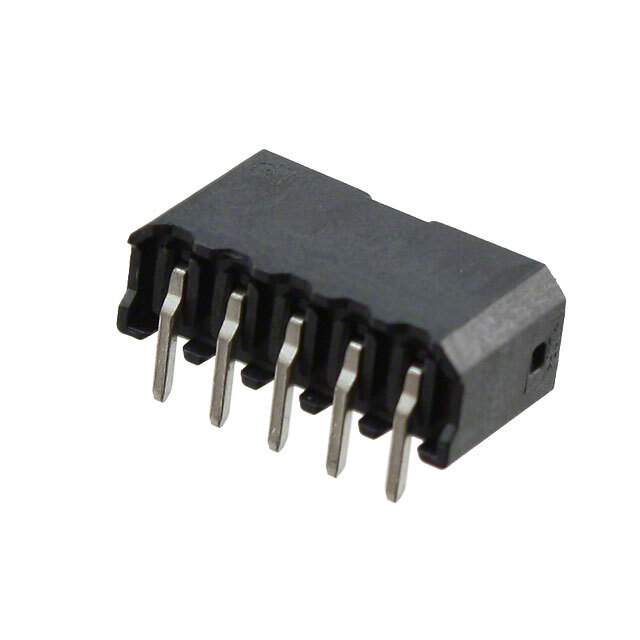

The Phoenix Contact PTSM0,5/5-HH-2,5-THRR32 is a header with male pins, shrouded on 4 sides, designed for interconnects in terminal blocks.

• Positions Per Level: 5
• Number of Levels: 1
• Pitch: 0.098 inches
• Header Orientation: 90 degrees, right angle
• Termination Style: Solder
• Current Rating (IEC): 6A
• Voltage Rating (IEC): 160V
• Housing Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
• Standard Package: 500
• Mounting Style: Through Hole
• Insulation Height: 0.197 inches
• Contact Tail Length: 0.083 inches
• RoHS Compliant: Yes
