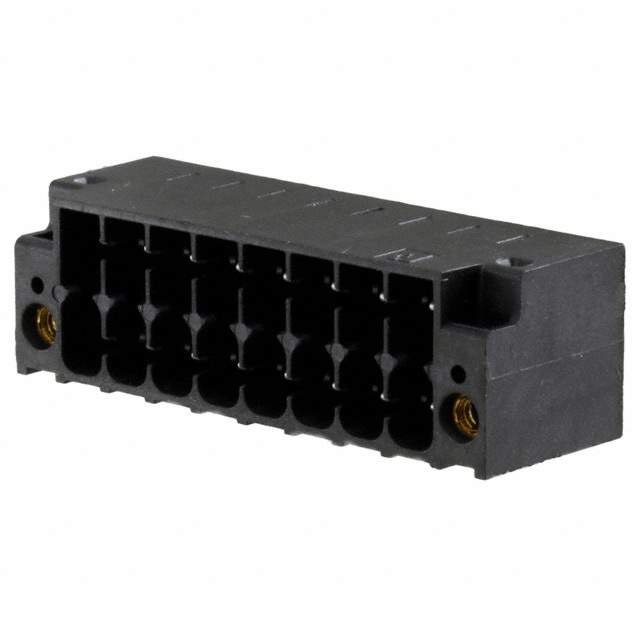

The Phoenix Contact 1332292-1787072 is a header male pin shrouded connector that has 16 positions, 8 positions per level, and 2 levels.

• Positions: 16
• Positions Per Level: 8
• Number of Levels: 2
• Pitch: 0.138 inches (3.50mm)
• Header Orientation: 90 degrees, Right Angle
• Termination Style: Solder
• Current Rating (IEC): 8A
• Voltage Rating (IEC): 250V
• Current Rating (UL): 8A
• Voltage Rating (UL): 150V
• Color: Black
• Contact Mating Finish: Tin
• Features: Mating and Mounting Flange
• Housing Material: Liquid Crystal Polymer (LCP)
• Material Flammability Rating: UL94 V-0
• Standard Package: 50
• Mounting Style: Through Hole
• Insulation Height: 0.425 inches (10.80mm)
• Contact Tail Length: 0.079 inches (2.00mm)
• ROHS3 Compliant: Yes
