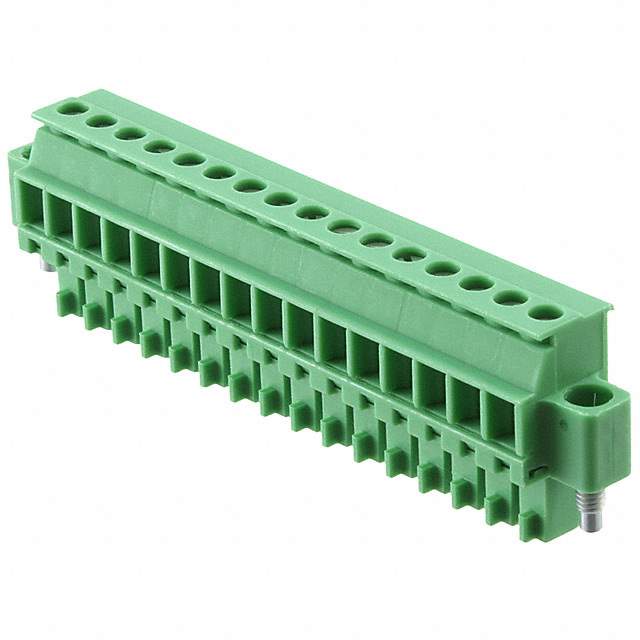

Same model may have multiple batches, images only for reference.

1828485

Name: 1828485
Brand: Phoenix Contact
SKU: 1332308
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1828485
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 16POS 3.81MM / 16 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90° Free Hanging (In-Line)
Datasheet	1828485 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	16
Positions Per Level	16
Number of Levels	1
Pitch	0.150" (3.81mm)
Plug Wire Entry	90°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.752" (19.10mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-6347,1828485-ND,MCVR 1,5/16-STF-3,81,MCVR1,5/16-STF-3,81
Standard Package	50
Win Source Part Number	1332308-1828485
Ultra Librarian 3D Model	Ultra Librarian 1828485 CAD Model

Alternative Products

Description

The Phoenix Contact 1332308-1828485 is a 16-position female socket plug connector that is ideal for use in terminal blocks.

Pitch: 0.150 inches
Plug Wire Entry: 90-Degree
Termination Style: Screw-Rising Cage Clamp
Current Rating (IEC): 8A
Voltage Rating (IEC): 320V
Current Rating (UL): 8A
Voltage Rating (UL): 300V
Wire Gauges: 14-30 AWG or 0.14-1.5mm²
Color: Green
Contact Mating Finish: Tin
Mating Flange: Yes
Material: Polyamide (PA) and Nylon
Mounting: Free-Hanging
Insulation Height: 0.752 inches
Standard Package: 50
Screw Size: M2
Torque-Screw: 0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length: 7mm
