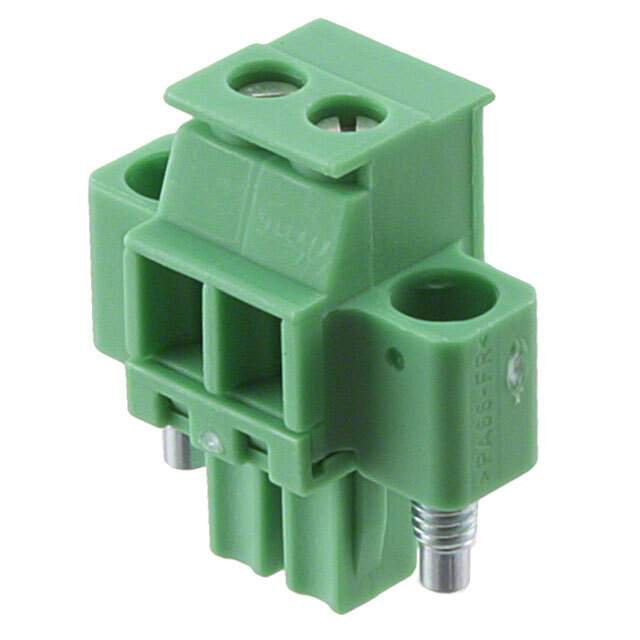

Same model may have multiple batches, images only for reference.

1828498

Name: 1828498
Brand: Phoenix Contact
SKU: 1332220
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1828498
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS 3.81MM / 2 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 270° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.150" (3.81mm)
Plug Wire Entry	270°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.752" (19.10mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-7558,MCVW1,5/2-STF-3,81,MCVW152STF381
Standard Package	50
Win Source Part Number	1332220-1828498
Ultra Librarian 3D Model	Ultra Librarian 1828498 CAD Model

Alternative Products

Description

The Phoenix Contact Terminal Block Header is a plug connector that is designed for female sockets.

Positions: 2
Pitch: 0.150 inches (3.81mm)
Termination Style: Screw-rising cage clamp
Current Rating: 8A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Wire Gauge Range: 14-30 AWG
Feature: Mating flange
Housing Material: Polyamide (PA) and nylon
Material Flammability Rating: UL94 V-0
Torque: 0.22-0.25 Nm (1.9-2.2 Lb-In)
Screw Size: M2
Insulation Height: 0.752 inches (19.10mm)
Wire Strip Length: 7mm
