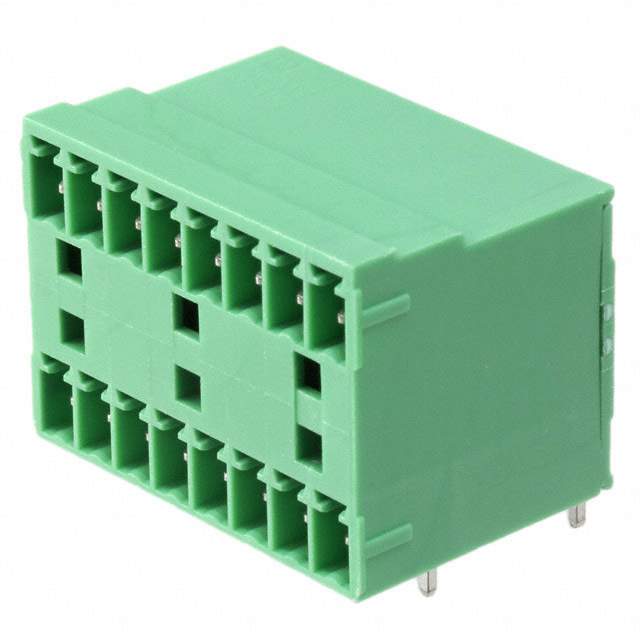

Same model may have multiple batches, images only for reference.

1843130

Name: 1843130
Brand: Phoenix Contact
SKU: 1332320
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1843130
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 16POS 3.81MM / 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Datasheet	1843130 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Positions Per Level	8
Number of Levels	2
Pitch	0.150" (3.81mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.894" (22.71mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	MCD 1,5/ 8-G1-3,81,MCD1,5/8-G1-3,81,277-6143,1843130-ND
Standard Package	50
Win Source Part Number	1332320-1843130
Ultra Librarian 3D Model	Ultra Librarian 1843130 CAD Model

Alternative Products

Description

The Phoenix Contact 1332320-1843130 is a header, male pins, shrouded (4 side) terminal block that has 16 positions per level and 8 positions per level.

Positions per Level: 16
Positions per Level: 8
Pitch: 0.150" (3.81mm)
Header Orientation: 90°, Right Angle
Contact Mating Finish: Tin
Housing Material: Polyamide (PA), Nylon
Current: 8A
Voltage: 320V (IEC) and 300V (UL)
Temperature Range for Operating: Not Provided
Standard Package: 50
Mounting: Through Hole
