Same model may have multiple batches, images only for reference.

1858808

Name: 1858808
Brand: Phoenix Contact
SKU: 1480295
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1858808
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

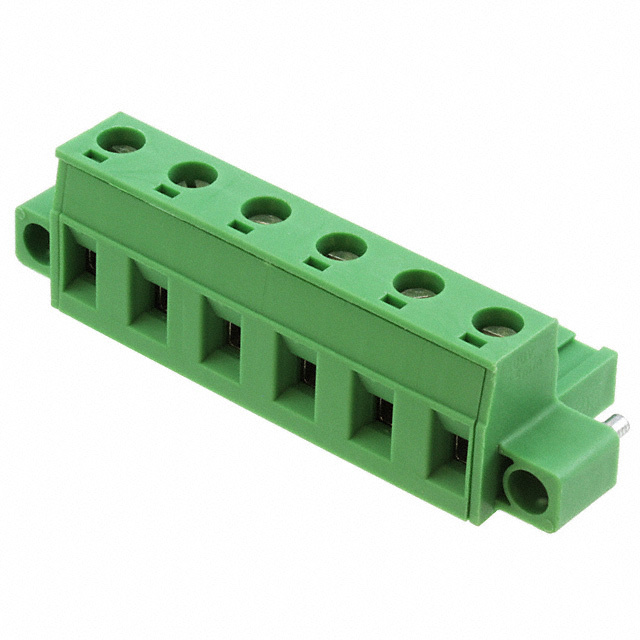

Description	6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Phoenix Contact
Series	COMBICON GMSTB
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	6
Positions Per Level	6
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	1 kV
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1480295-1858808
Ultra Librarian 3D Model	Ultra Librarian 1858808 CAD Model
