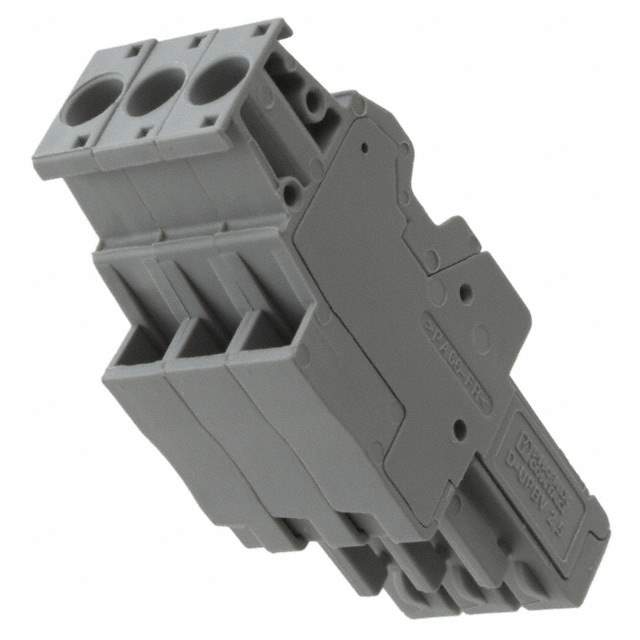

3045415 Real Image
Same model may have multiple batches, images only for reference.

3045415

Part No 3045415
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS 90DEG / 3 Position Terminal Block Plug, Female Sockets 90° Free Hanging (In-Line)
Datasheet
3045415 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Plug Wire Entry 90°
Termination Style Screw
Mounting Free Hanging (In-Line)
Current - IEC 24A
Voltage - IEC 500 V
Current - UL 20 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge or Range - mm2 0.14-4mm²
Color Gray
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 9mm
Housing Material Polyamide (PA), Nylon
Insulation Height 1.850" (47.00mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number UPBV 2,5/ 3,UPBV2,5/3,277-3815,3045415-ND
Standard Package 50
Win Source Part Number 1332256-3045415
Ultra Librarian 3D Model Ultra Librarian 3045415 CAD Model

Description

The Phoenix Contact 1332256-3045415 plug female socket is a connector terminal block that can be used in a variety of applications.

  • Wire Gauge: 12-26 AWG
  • Termination Style: screw
  • Current Rating (IEC): 24A
  • Current Rating (UL): 20A
  • Voltage Rating (IEC): 500V
  • Voltage Rating (UL): 600V
  • Housing Material: polyamide (PA), nylon
  • Material Flammability Rating: UL94 V-0
  • Mounting Style: free-hanging (in-line)
  • Torque Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
  • Screw Size: M3
  • Insulation Height: 1.850" (47.00mm)
  • Wire Strip Length: 9mm
  • RoHS Compliant: yes
