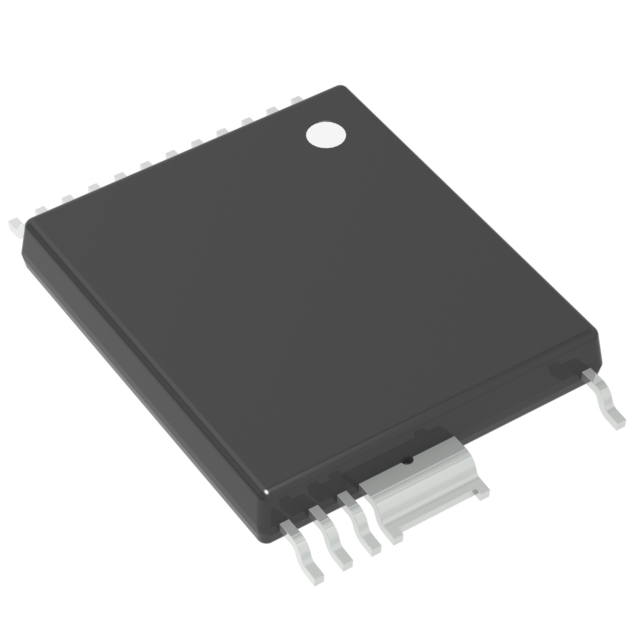

INN3996CQ-TL

Name: INN3996CQ-TL
Brand: Power Integrations
SKU: 1372579
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	INN3996CQ-TL
Manufacturer	Power Integrations
Catalog	PMIC - AC DC Converters, Offline Switchers
Description	IC OFFLINE SW FLBACK INSOP-24D
Datasheet	INN3996CQ-TL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - AC DC Converters, Offline Switches
Mfr	Power Integrations
Series	InnoSwitch™3-AQ
Package	Tape & Reel
Product Status	Active
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	900V
Topology	Flyback
Voltage - Supply (Vcc/Vdd)	30V ~ 925V
Duty Cycle	-
Frequency - Switching	110kHz
Power (Watts)	30 W
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features	EN, Soft Start
Temperature Range - Operating	-40°C ~ 125°C (TA)
Package / Case	24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
Supplier Device Package	InSOP-24D
Mounting Type	Surface Mount
Base Product Number	INN3996
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1372579-INN3996CQ-TL
Ultra Librarian 3D Model	Ultra Librarian INN3996CQ-TL CAD Model

Alternative Products

Description

The INN3996CQ-TL is an AC-DC converter and offline switch IC from the InnoSwitch™3-AQ series and manufactured by Power Integrations.

Applications: Power management
Temperature Range: -40°C to 125°C
Mounting Type: Surface mount
Power Rating: 30W
Control Functions: EN and soft start
Voltage Supply Range: 30V to 925V
Topology: Flyback
Fault Protections: Current limiting, over load, over temperature, over voltage, and short circuit
Output: Isolated
Voltage Breakdown: 900V
