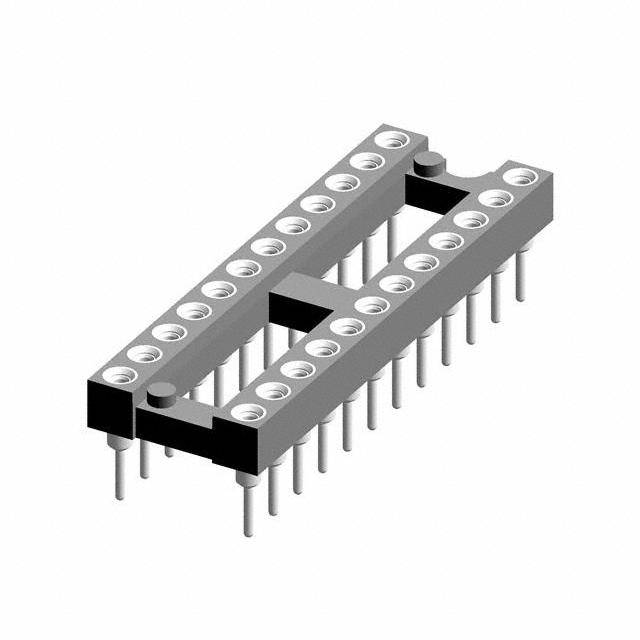

Same model may have multiple batches, images only for reference.
110-87-324-41-001101 Preci-Dip
Same model may have multiple batches, images only for reference.

110-87-324-41-001101

Part No 110-87-324-41-001101
Manufacturer Preci-Dip
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 24POS GOLD
Datasheet
110-87-324-41-001101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Preci-Dip
Series 110
Packaging Tube
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 24 (2 x 12)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material - Mating Beryllium Copper
Mounting Style Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Material - Post Brass
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature Range -55°C ~ 125°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Resistance 10 mOhm
Win Source Part Number 760205-110-87-324-41-001101
Popularity Medium
Supply and Demand Status Limited
Quantity per package 17
Family Name 110
Introduction Date March 19, 2010
ECCN EAR99
Country of Origin Switzerland
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 110-87-324-41-001101 CAD Model

Description

The Preci-Dip 110 series connector is a through-hole DIP with a 0.3" (7.62mm) row spacing.

  • Pins: 24
  • Grid: 2 x 12
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Current Rating: 1A
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Flammability Rating: UL94 V-0
  • Contact Resistance: 10 mOhm
  • Applications: Open Frame
  • Operating Temperature Range: -55°C to 125°C
  • Mounting: Through-Hole
  • Series: 110
  • EOL Date: 2026 (Estimated)
