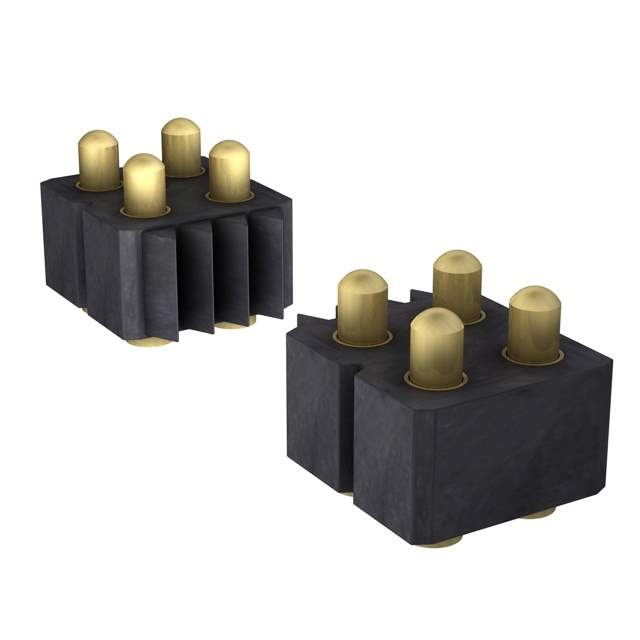

813-SS-016-30-002191 Real Image
Same model may have multiple batches, images only for reference.

813-SS-016-30-002191

Part No 813-SS-016-30-002191
Manufacturer Preci-Dip
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING PISTON 16POS SMD / 16 Position Spring Piston Connector Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Spring Loaded
Mfr Preci-Dip
Series 813
Package Bulk
Connector Type Piston
Number of Contacts 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Surface Mount
Material Brass
Contact Finish Gold
Contact Finish Thickness 19.7µin (0.50µm)
Base Product Number 813-SS
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350976-813-SS-016-30-002191
Ultra Librarian 3D Model Ultra Librarian 813-SS-016-30-002191 CAD Model

Description

The 813 series spring-loaded piston connector from Preci-Dip is a reliable and durable choice for any application requiring a high-quality rectangular connector.

  • Series: 813
  • Pitch: 0.100" (2.54mm)
  • Number of Rows: 2
  • Number of Contacts: 16
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 19.7µin (0.50µm)
  • Contact Material: Brass
  • Packaging: Bulk
  • Standard Package: 600
  • REACH: Unaffected
  • ECCN: EAR99
