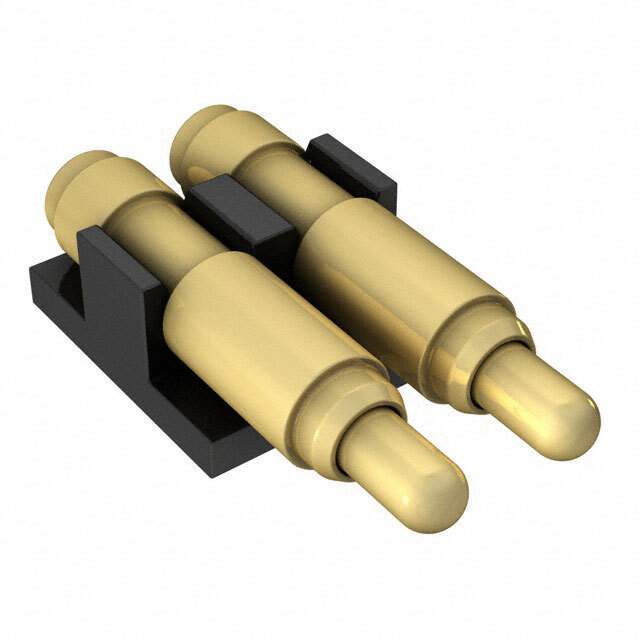

8PM-11-0002-02-131191 Preci-Dip
Same model may have multiple batches, images only for reference.

8PM-11-0002-02-131191

Part No 8PM-11-0002-02-131191
Manufacturer Preci-Dip
Catalog Rectangular Connectors
Description CONN SPRING PISTON 2POS R/A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306460-8PM-11-0002-02-131191
Category Connectors, Interconnects Rectangular Connectors Spring Loaded
Manufacturer Preci-Dip
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Type Piston
Pitch 0.100" (2.54mm)
Mounting Type Surface Mount, Right Angle
Material Brass
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Ultra Librarian 3D Model Ultra Librarian 8PM-11-0002-02-131191 CAD Model

Description

2 Position Spring Piston Connector Surface Mount, Right Angle
