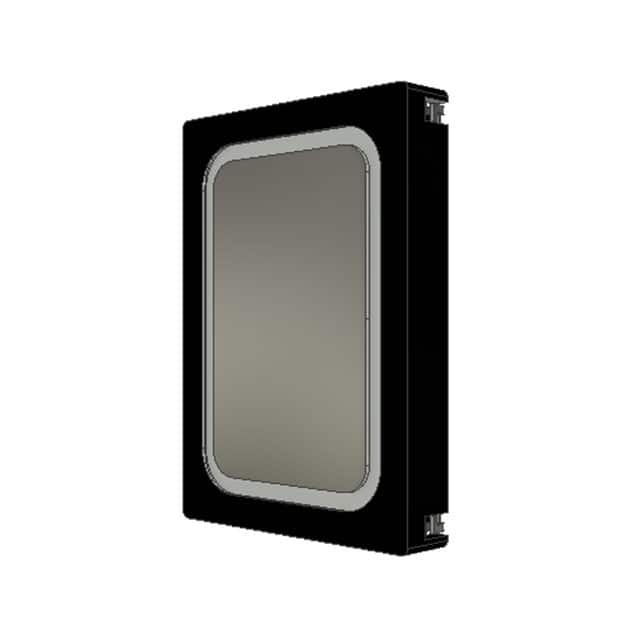

Same model may have multiple batches, images only for reference.
AS01808AO-SC-WP-R
Same model may have multiple batches, images only for reference.

AS01808AO-SC-WP-R

Part No AS01808AO-SC-WP-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 8OHM 1W TOP PORT 94DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Speakers
Mfr PUI Audio, Inc.
Series Slim Line Micro
Package Tray
Product Status Obsolete
Technology Magnetic
Type General Purpose
Frequency Range 420 Hz ~ 14 kHz
Frequency - Self Resonant 420Hz
Impedance 8 Ohms
Efficiency - dBA 94.00
Efficiency - Testing 1W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 1.2 W
Port Location Top
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Spring Type
Size / Dimension 0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8518.29.8000
Win Source Part Number 911688-AS01808AO-SC-WP-R
Ultra Librarian 3D Model Ultra Librarian AS01808AO-SC-WP-R CAD Model

Description

The 911688-AS01808AO-SC-WP-R is a rectangular general-purpose speaker from the Slim Line Micro series.

  • Dimensions: 0.709" L x 0.512" W (18.00mm x 13.00mm)
  • Height: 0.098" (2.50mm) when seated
  • Termination: spring-type
  • Packaging: tray
  • Standard Package: 100 pcs
  • Frequency Range: 420 Hz to 14 kHz
  • Impedance: 8 Ohms
  • Power (Maximum): 1.2 W
  • Rated Power: 1 W
  • Cone Material: polyester and polyethylene terephthalate (PET)
  • Magnet Material: Nd-Fe-B
  • Efficiency: 94.00 dBA
  • Test: 1W/100mm
  • IP Rating: IP65
  • Manufacturer: PUI Audio, Inc.
  • Status: obsolete
