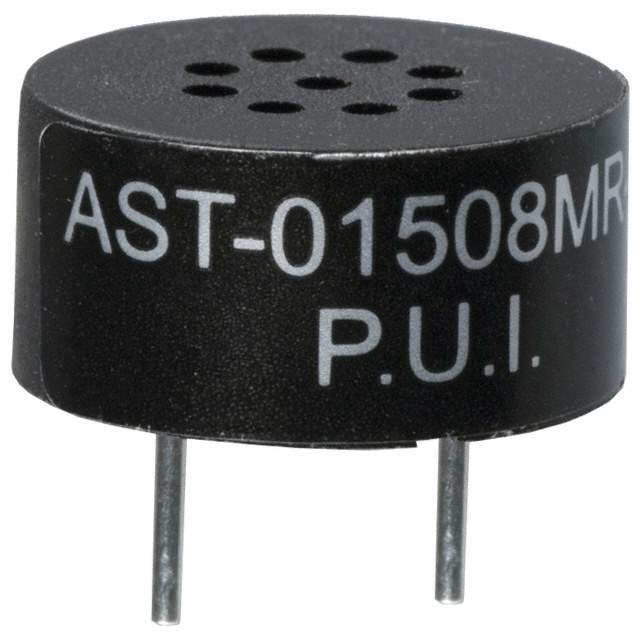

AST-01508MR-R Real Image
Same model may have multiple batches, images only for reference.

AST-01508MR-R

Part No AST-01508MR-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 8OHM 300MW TOP PORT 87DB / Speakers Neodymium Iron Boron 1700±20%Hz 0.5W 87±3dBA 8Ohm Round Pin
Datasheet
AST-01508MR-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Series AST
Packaging Tray
Type Magnetic
Frequency Range 1.7kHz ~ 20kHz
Impedance 8 Ohm
Sound Pressure Level (SPL) 87dB
Power - Rated 300mW
Power - Max 500mW
Port Location Top
Shape Round
Material - Cone PET
Material - Magnet Nd-Fe-B
Termination PC Pins
Dimension 0.591" Dia (15.00mm)
Height - Seated (Maximum) 0.295" (7.50mm)
Win Source Part Number 768882-AST-01508MR-R
Popularity Medium
Supply and Demand Status Limited
Family Name AST-01508MR-R
Introduction Date February 24, 2009
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian AST-01508MR-R CAD Model

Description

The PUI Audio, Inc. AST-01508MR-R is a magnetic type audio product with a round shape and a top port location.

  • Type: Magnetic
  • Shape: Round
  • Port Location: Top
  • Impedance: 8 Ohm
  • Maximum Power: 500mW
  • Rated Power: 300mW
  • Frequency Range: 1.7kHz to 20kHz
  • Sound Pressure Level (SPL): 87dB
  • Cone Material: PET
  • Magnet Material: Nd-Fe-B
  • Series: AST
  • Packaging: tray
  • Diameter: 0.591 inches (15.00mm)
  • Seated Height: 0.295 inches (7.50mm)
  • Introduction Date: February 24, 2009
  • Estimated EOL Date: 2026
  • ECCN: EAR99
  • Supply and Demand Status: limited
