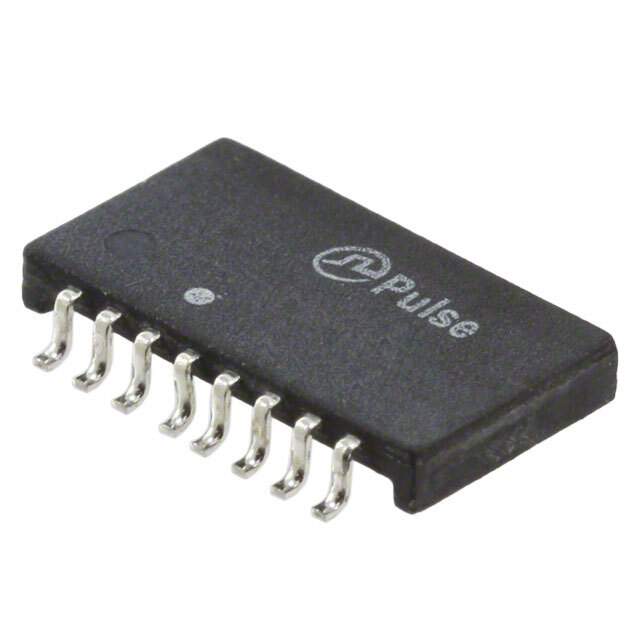

The H0019NLT is a surface mount, single-port Gigabit Ethernet transformer module manufactured by Pulse Electronics. It is designed to provide isolation and common mode rejection for Gigabit Ethernet applications.

Applications:

• Gigabit Ethernet (1000Base-T) interfaces
• Network interface cards (NICs)
• Routers and switches
• Motherboards
• Industrial Ethernet equipment

Features:

• Surface mount package
• Single port configuration
• Compliant with IEEE 802.3ab standard
• Operating temperature range: 0°C to +70°C
• Isolation voltage: 1500 Vrms
• RoHS compliant

Benefits:

• Provides galvanic isolation between the PHY and the Ethernet network, protecting sensitive components.
• Reduces common mode noise, improving signal integrity and reducing EMI.
• Surface mount design allows for automated assembly and efficient use of board space.
• Complies with Gigabit Ethernet standards for reliable performance.
• Ensures compatibility with a wide range of Gigabit Ethernet devices.

Additional Details:

The H0019NLT is a key component in Gigabit Ethernet interfaces, providing essential isolation and noise filtering. This transformer is designed to meet the demanding requirements of the IEEE 802.3ab standard, ensuring reliable and high-speed data transmission. Its surface mount package makes it easy to integrate into modern electronic designs. The H0019NLT is commonly used in applications where high-performance Gigabit Ethernet connectivity is crucial, such as networking equipment, servers, and industrial automation systems.
