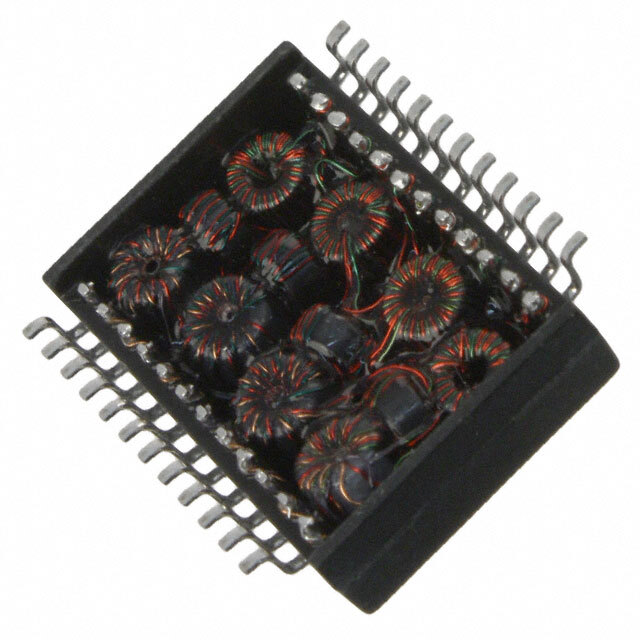

Part No H5015NL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE GIGABIT 1PORT / Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT Surface Mount
Datasheet
H5015NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Type Surface Mount
Size / Dimension 0.697" L x 0.480" W (17.70mm x 12.20mm)
Height - Seated (Max) 0.185" (4.70mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.05 oz (1.42 g)
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 919950-H5015NL
Ultra Librarian 3D Model Ultra Librarian H5015NL CAD Model

Description

The 919950-H5015NL is a pulse transformer designed for use in transformers.

  • Size: 0.697" L x 0.480" W (17.70mm x 12.20mm)
  • Height: 0.185" (4.70mm)
  • Transformer Type: Isolation and data interface (encapsulated)
  • Mounting Type: Surface Mountable
  • Operating Temperature Range: 0°C to 70°C
  • Series: Pulse
  • Package: Tube
  • Status: Active
  • Standard Package: 25 pcs
  • Weight: 0.05 oz (1.42 g)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
