Same model may have multiple batches, images only for reference.

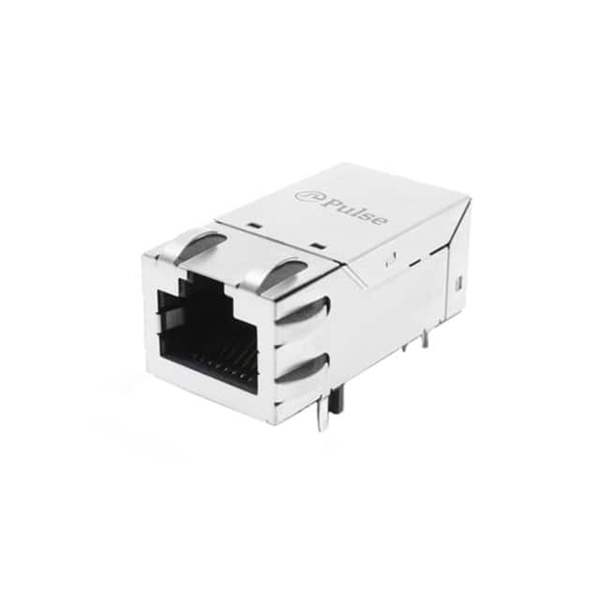

JK0-8001NL

Name: JK0-8001NL
Brand: Pulse
SKU: 992495
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	JK0-8001NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN RJ45 1P HDBASET 30W / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
Datasheet	JK0-8001NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks
Mfr	Pulse Electronics Network
Series	PULSEJACK™
Package	Tray
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	2
Number of Rows	1
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Shielded, EMI Finger
Features	Board Guide
LED Color	Does Not Contain LED
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Housing Material	Thermoplastic
Temperature Range - Operating	0°C ~ 85°C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	1840-1180
Standard Package	45
Win Source Part Number	992495-JK0-8001NL
Ultra Librarian 3D Model	Ultra Librarian JK0-8001NL CAD Model

Alternative Products

Description

The PULSEJACK™ 992495-JK0-8001NL is a high-quality modular connector jack that is designed to provide reliable performance. It is manufactured by Pulse Electronics Network, a leading brand in the electronics industry.

Features: Board guide, shielded EMI finger
Orientation: 90-degree angle (right)
Positions/Contacts: 8p8c (RJ45, Ethernet)
Ports: Two
Contact Material: Phosphor Bronze
Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
Housing Material: Thermoplastic
Connector Type: Jack
Mounting: Through-hole
Temperature Range: 0°C to 85°C
