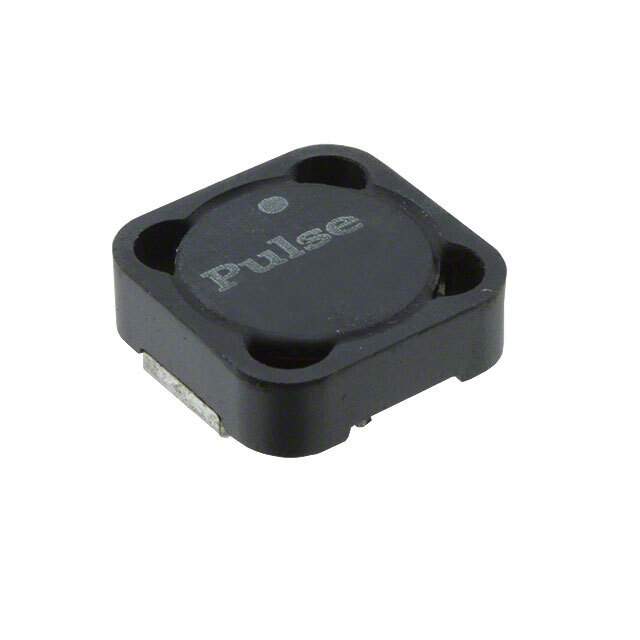

Same model may have multiple batches, images only for reference.

P1168.332NLT

Name: P1168.332NLT
Brand: Pulse
SKU: 994169
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1168.332NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 6.4A 11 MOHM SMD / 3.3 µH Shielded Wirewound Inductor 6.4 A 11mOhm Max Nonstandard
Datasheet	P1168.332NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	P1168NL
Package	Tape & Reel (TR)
Type	Wirewound
Inductance	3.3 µH
Tolerance	±30%
Current Rating (Amps)	6.4 A
Current - Saturation (Isat)	7.3A
Shielding	Shielded
DC Resistance (DCR)	11mOhm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.177" (4.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	500
Win Source Part Number	994169-P1168.332NLT
Ultra Librarian 3D Model	Ultra Librarian P1168.332NLT CAD Model

Alternative Products

Description

The P1168NL is a wirewound inductor with a shielded package and a standard package of 500.

Type: Wirewound Inductor
Package: Shielded
Standard Package: 500
Inductance: 3.3 µH
Tolerance: ±30%
DC Resistance: 11mΩ max
Height Seated (Max): 0.177 inches (4.50mm)
Frequency Self-Resonant: 40MHz
Mounting: SMD (SMT)
Operating Temperature: -40°C to 130°C
Application: Inductors, Coils, Chokes>Fixed Inductors
