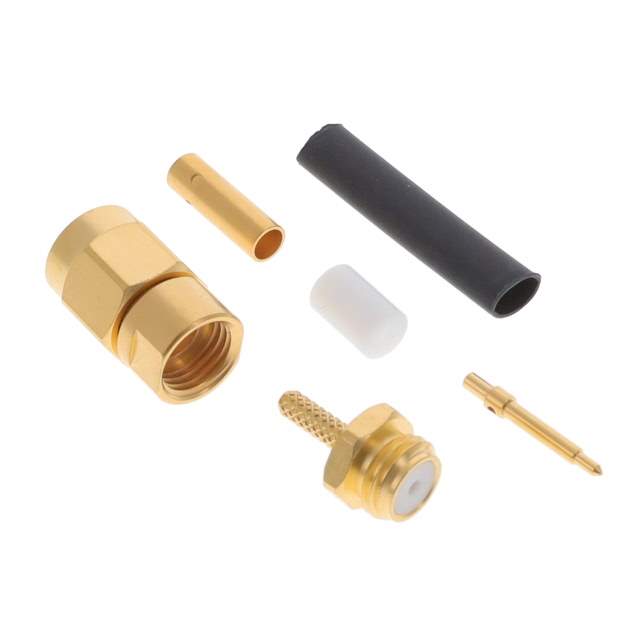

R125069000 Real Image
Same model may have multiple batches, images only for reference.

R125069000

Part No R125069000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description SMA / STRAIGHT PLUG CRIMP OR SOL / SMA Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
Datasheet
R125069000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Box
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Shield Termination Clamp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-178, 196
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 250 V
Mating Cycles 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Other Names R125.069.000,2201-R125069000
Standard Package 100
Win Source Part Number 1195341-R125069000
Ultra Librarian 3D Model Ultra Librarian R125069000 CAD Model

Description

The R125069000 connector is a coaxial connector that is suitable for use in electronic devices that require an SMA connector.

  • Connector Type: Coaxial, SMA
  • Connector Type: Plug with Male Pin
  • Fastening Type: Threaded
  • Package: Box
  • Contact Termination: Crimp or Solder
  • Voltage Rating: 250V
  • Frequency Max: 12.4 GHz
  • Housing Color: Gold
  • Standard Package: 100
  • Impedance: 50Ohm
  • Shield Termination: Clamp
  • Body Finish: Gold
  • Center Contact Plating: Gold
  • Mating Cycles: 500
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -65°C to 165°C
