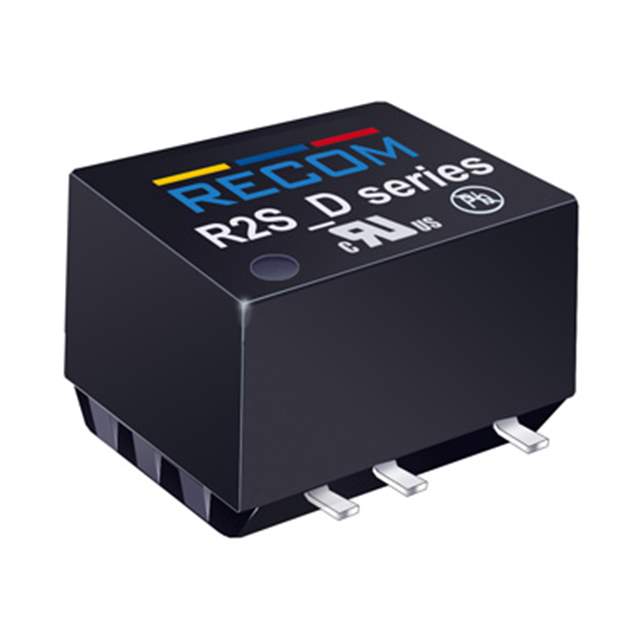

R2D-1505/P

Get a Quote

Part No	R2D-1505/P
Manufacturer	Recom Power
Catalog	PMIC - Voltage Regulators - Linear + Switching
Description	DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 13.5V - 16.5V Input
Datasheet	R2D-1505/P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE R2D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	13.5V
Voltage - Input (Max)	16.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	200mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	80%
Mounting	SMD (SMT)
Package / Case	10-SMD Module, 6 Leads
Dimension	0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm)
Base Product Number	R2D-1505
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	10901279,R2D1505/P
Standard Package	33
Win Source Part Number	962946-R2D-1505/P
Ultra Librarian 3D Model	Ultra Librarian R2D-1505/P CAD Model

Alternative Products

Description

The ECONOLINE R2D (2W) isolated module is a high-quality electronic component from Recom Power. With 2 outputs of 200mA and 200mA, this converter has a voltage isolation of 1 kV and an efficiency of 80%.

Outputs: 200mA and 200mA
Voltage Isolation: 1 kV
Efficiency: 80%
Package: 10-SMD module, 6 leads
Mounting: SMD (SMT)
Application: ITE (Commercial)
Temperature Range: -40°C ~ 100°C
Dimensions: 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm)
Alternative Parts: R2D-1205, R2D12-1205, and R2D-050510901279
REACH: Unaffected
HTSUS: 8504.40.9580
Other Names: 10901279 and R2D1505/P
Base Product Number: R2D-1505
