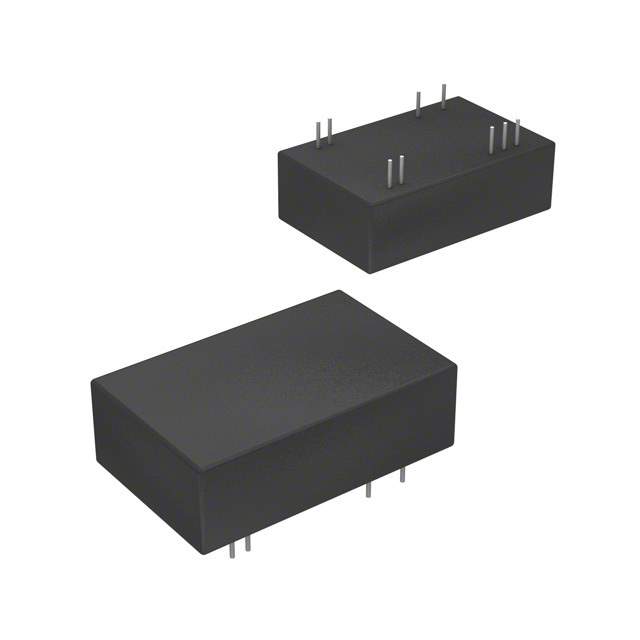

Same model may have multiple batches, images only for reference.

REC3-4815DRWZ/H4/C

Get a Quote

Part No	REC3-4815DRWZ/H4/C
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 72V Input
Datasheet	REC3-4815DRWZ/H4/C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REC3-DRW (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	72V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	4 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	85%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number	REC3-4815
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	10008151,REC34815DRWZ/H4/C
Standard Package	15
Win Source Part Number	1034163-REC3-4815DRWZ/H4/C
Ultra Librarian 3D Model	Ultra Librarian REC3-4815DRWZ/H4/C CAD Model

Alternative Products

Description

The Recom Power product is a power supply that is designed for board mount DC DC converters.

Series: ECONOLINE REC3-DRW
Module Type: Isolated
SCP: Yes
Package: Tube
Applications: ITE (Commercial) and Medical
Standard Package: 15 Units
Power Output: 3W
Voltage Isolation: 4 kV
Output Configuration: Dual
Maximum Current Output: 100mA each
Voltage - Input: 18V to 72V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Efficiency: 85%
