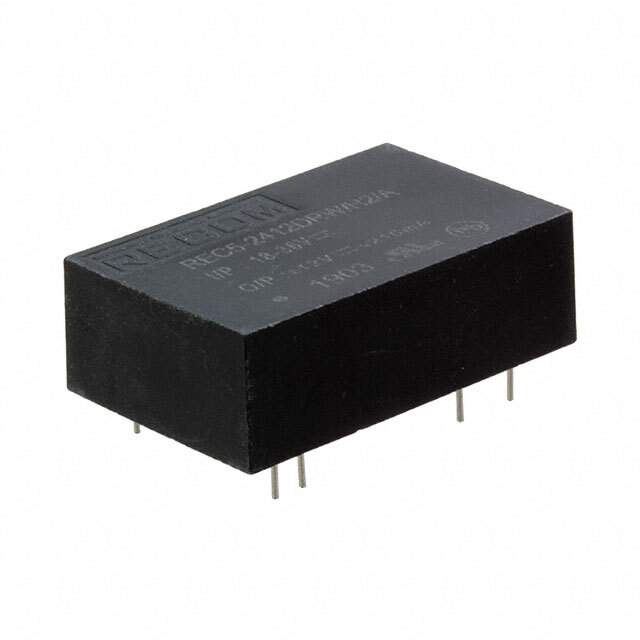

Same model may have multiple batches, images only for reference.

REC5-2412DRW/H2/A

Name: REC5-2412DRW/H2/A
Brand: Recom Power
SKU: 1335303
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	REC5-2412DRW/H2/A
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 18V - 36V Input
Datasheet	REC5-2412DRW/H2/A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	210mA, 210mA
Power (Watts)	5 W
Voltage - Isolation	2 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 75°C
Efficiency	85%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number	REC5-2412
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	REC5-2412DRW/H2/A-ND,REC52412DRW/H2/A,10005175,945-1870-5,REC52412DRWH2A
Standard Package	15
Win Source Part Number	1335303-REC5-2412DRW/H2/A
Ultra Librarian 3D Model	Ultra Librarian REC5-2412DRW/H2/A CAD Model

Alternative Products

Description

The Recom Power 1335303-REC5-2412DRW/H2/A is an isolated module type DC DC converter that has a power rating of 5W.

Power Rating: 5W
Number of Outputs: 2
Voltage Isolation: 2kV
Maximum Output Current: 210mA
Input Voltage: 18V to 36V
Output Voltage Output 1: 12V
Output Voltage Output 2: -12V
Features: SCP
Temperature Range: -40°C to 75°C
Device Package: 24-DIP module, 8 leads
Standard Package: 15
MSL Level: 1 (Unlimited)
REACH Status: REACH unaffected
HTSUS Code: 8504.40.9580
Other Part Numbers: REC5-2412DRW/H2/A-ND, REC52412DRW/H2/A, 10005175, 945-1870-5, and REC52412DRWH2A
ROHS3 Compliance: ROHS3 compliant
