Same model may have multiple batches, images only for reference.

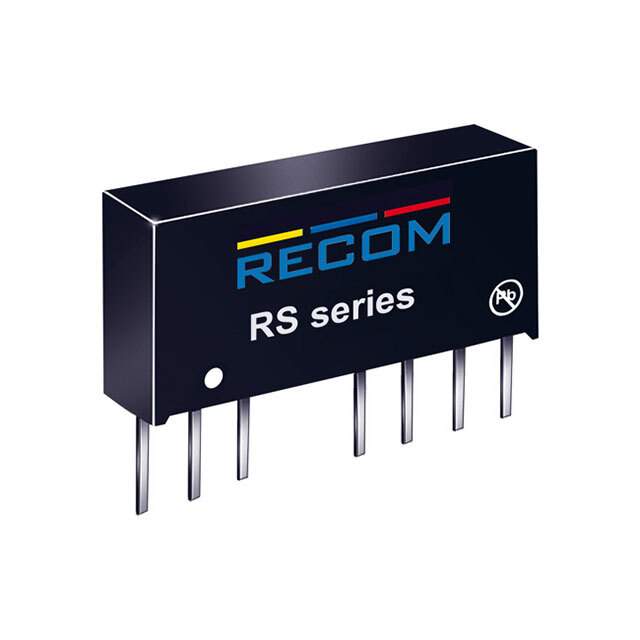

RS-1205D Real Image
Same model may have multiple batches, images only for reference.

RS-1205D

Part No RS-1205D
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 9V - 18V Input
Datasheet
RS-1205D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -45°C ~ 85°C
Efficiency 75%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active Low
Base Product Number RS-1205
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1486-RS-1205D,10002860,RS1205D,945-1311
Standard Package 22
Win Source Part Number 1335319-RS-1205D
Ultra Librarian 3D Model Ultra Librarian RS-1205D CAD Model

Description

The Recom Power 1335319-RS-1205D isolated module is a power supply DC DC converter that comes with a remote on/off feature and SCP protection.

  • Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
  • Applications: ITE (Commercial)
  • Power Output: 2Watts
  • Voltage Isolation: 1kV
  • Outputs: Two outputs
  • Output 1: 5V
  • Output 2: -5V
  • Efficiency: 75%
  • Temperature Range: -45°C ~ 85°C
  • Standard Package: 22
  • Mounting: Through a hole
  • Control Features: Enable, active low
