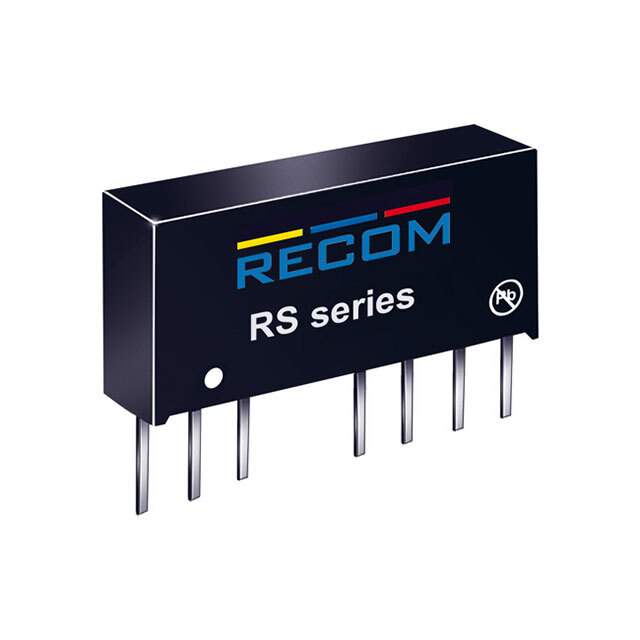

Same model may have multiple batches, images only for reference.

RS-4812SZ/H2

Get a Quote

Part No	RS-4812SZ/H2
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 166mA 18V - 72V Input
Datasheet	RS-4812SZ/H2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RS (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	72V
Voltage - Output 1	12V
Current - Output (Max)	166mA
Power (Watts)	2 W
Voltage - Isolation	2 kV
Applications	ITE (Commercial) , Medical
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Base Product Number	RS-4812
Standard Package	22
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1337854-RS-4812SZ/H2
Ultra Librarian 3D Model	Ultra Librarian RS-4812SZ/H2 CAD Model

Alternative Products

Description

The ECONOLINE RS (2W) is an isolated module type DC DC converter with remote On/Off and SCP features.

Application: ITE (Commercial), Medical
Power: 2 W
Voltage Input Range: 18V to 72V
Number of Outputs: 1
Output Voltage: 12V
Efficiency: 83%
Operating Temperature: -40°C ~ 85°C
Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
California Prop 65: Approved
