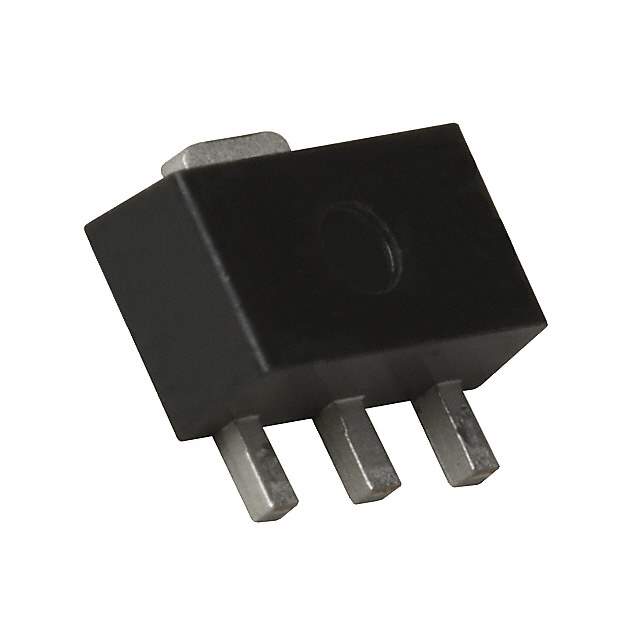

2SC5337-T1-AZ Real Image
Same model may have multiple batches, images only for reference.

2SC5337-T1-AZ

Part No 2SC5337-T1-AZ
Manufacturer Renesas Electronics America
Catalog RF Transistors (BJT)
Description Trans RF BJT NPN 15V 0.25A 4-Pin(3+Tab) Power Mini-Mold T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Collector Base Voltage (VCBO) 30 V
Collector Emitter Voltage (VCEO) 15 V
Emitter Base Voltage (VEBO) 3 V
Height 1.5 mm
Lead Free Yes
Length 4.5 mm
Maximum Operating Temperature 150 °C
Min Operating Temperature -65 °C
Mount Surface Mount
Number of Elements 1
Number of Pins 4
Packaging Tape and Reel
Polarity NPN
Power Dissipation 2 W
Radiation Hardening No
RoHS Compliant
Width 2.45 mm
Win Source Part Number 1037222-2SC5337-T1-AZ
Categories RF Transistors(BJT)
Manufacturer Renesas Electronics America
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 2SC5337-T1-AZ CAD Model

Description

The Renesas Electronics America 2SC5337-T1-AZ is an NPN RF transistor with a power dissipation of 2 W.

  • Collector Base Voltage (VCBO): 30 V
  • Collector Emitter Voltage (VCEO): 15 V
  • Emitter Base Voltage (VEBO): 3 V
  • Mounting Style: Surface mount
  • RoHS Compliant: Yes
  • Supply Status: Short
  • Maximum Operating Temperature: 150 °C
  • Length: 4.5 mm
  • Height: 1.5 mm
  • Width: 2.45 mm
  • Number of Pins: 4
  • Category: RF Transistors(BJT)
  • Popularity: Low
