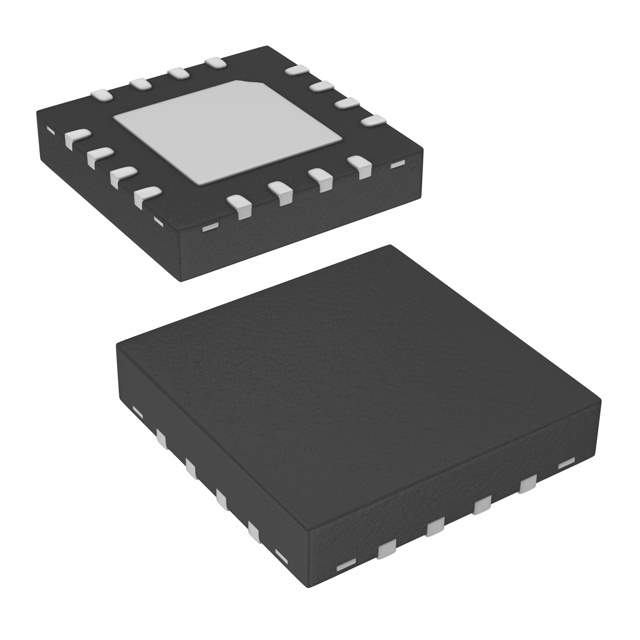

ISL6520AIRZ-T Real Image
Same model may have multiple batches, images only for reference.

ISL6520AIRZ-T

Part No ISL6520AIRZ-T
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 16QFN  /  Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-QFN (4x4)
Datasheet
ISL6520AIRZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Controllers
Mfr Renesas Electronics America Inc
Package Tape & Reel (TR)
Product Status Obsolete
Output Type Transistor Driver
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 4.5V ~ 5.5V
Frequency - Switching 300kHz
Duty Cycle (Max) 100%
Synchronous Rectifier Yes
Clock Sync No
Control Features Phase Control
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 16-VQFN Exposed Pad
Supplier Device Package 16-QFN (4x4)
Base Product Number ISL6520A
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 6,000
Win Source Part Number 1149082-ISL6520AIRZ-T
Ultra Librarian 3D Model Ultra Librarian ISL6520AIRZ-T CAD Model

Description

The ISL6520AIRZ-T is an Integrated Circuit (IC) that belongs to the PMIC - Voltage Regulators - DC DC Switching Controllers category.

  • Supply Voltage: 4.5V to 5.5V
  • Operating Temperature: -40°C to 85°C
  • Topology: Buck
  • Frequency Switching: 300kHz
  • Output Configuration: Single
  • Polarity: Positive
  • Rectifier Type: Synchronous
  • Features: Phase Control
  • Output Type: Transistor Driver
  • Package Type: 16-QFN (4x4) with an Exposed Pad
  • Standard Package Quantity: 6,000
