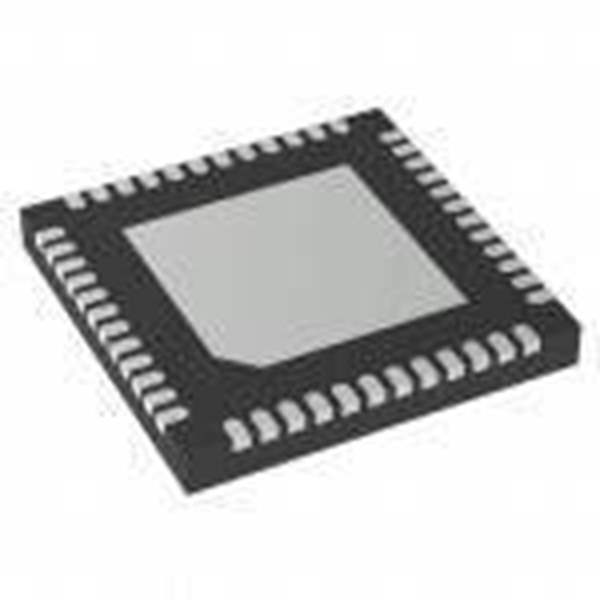

The ISL69239IRAZ-T is a highly integrated digital multi-phase (X+Y+Z) PWM controller from Renesas Electronics America. It's designed for advanced CPU and memory power delivery systems, offering flexible configuration and precise control for demanding applications. This controller supports multiple power rails and various operating modes, making it suitable for high-performance computing environments.

Applications

• High-End Desktop (HEDT) Motherboards: Powers the CPU and memory in high-performance desktop computers.
• Servers: Provides accurate and efficient power management for server CPUs and memory.
• Workstations: Used in professional workstations to power CPUs, GPUs, and memory.
• Gaming PCs: Powers the CPU and GPU in high-end gaming computers.
• Data Centers: Implemented in power delivery systems for data center servers.

Features

• Multi-Phase Control (X+Y+Z): Supports up to 12 phases for the CPU core, integrated graphics, and system memory.
• Digital PWM Engine: Offers precise control and dynamic voltage adjustments via digital pulse-width modulation.
• PMBus Interface: Allows for real-time monitoring, control, and configuration through the industry-standard PMBus protocol.
• Adaptive Transient Response (ATR): Optimizes transient response to load changes, ensuring stable voltage regulation.
• Overcurrent Protection (OCP), Overvoltage Protection (OVP), Undervoltage Protection (UVP): Comprehensive protection features to prevent damage to the powered components.

Benefits

• High Efficiency: Multi-phase operation and digital control optimize power delivery efficiency.
• Precise Voltage Regulation: Ensures stable and accurate voltage supply to the CPU and memory.
• Flexible Configuration: PMBus interface allows for easy configuration and customization.
• Enhanced System Reliability: Comprehensive protection features prevent damage from electrical faults.
• Real-Time Monitoring: PMBus interface enables real-time monitoring of voltage, current, and temperature.

Additional Details

The ISL69239IRAZ-T employs a sophisticated control algorithm that optimizes the power delivery system for both steady-state and transient conditions. The integrated PMBus interface provides a convenient way to monitor and adjust key parameters, allowing for fine-tuning of the power delivery system. The device is typically used in conjunction with external MOSFET drivers and power stages to create a complete power solution.

Specifications:

• Number of Phases: Up to 12
• Input Voltage Range: 4.5V to 25V
• Output Voltage Range: 0.5V to 5.5V
• Operating Temperature: -40°C to +85°C
• Package Type: QFN (Quad Flat No-Lead)
