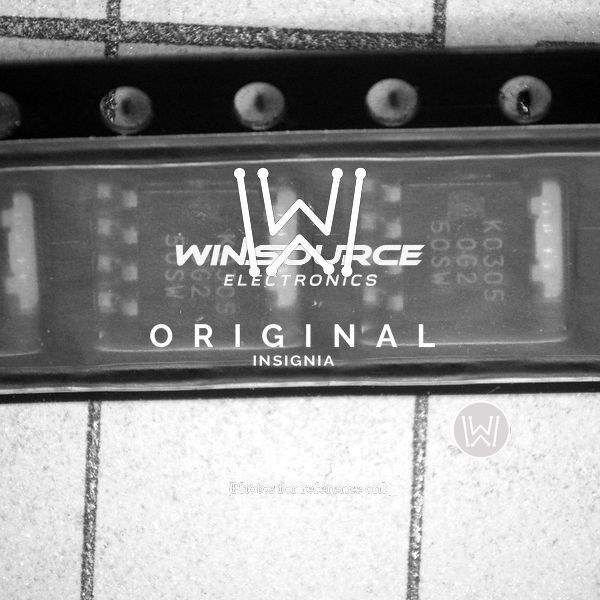

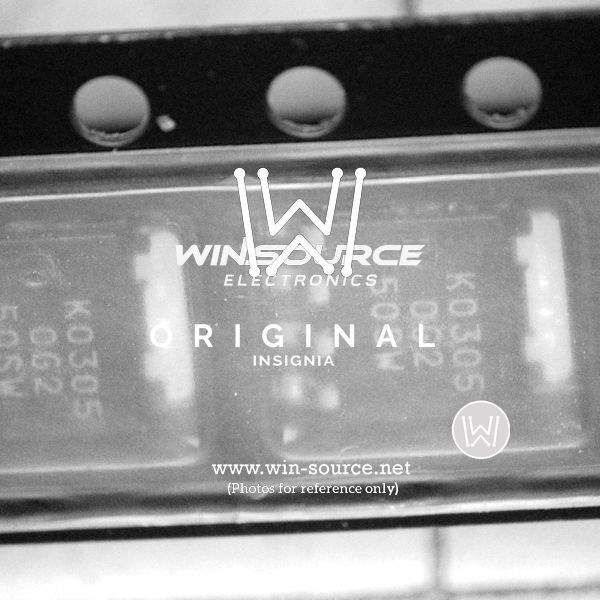

RJK0305DPB-02#J0 Real Image RJK0305DPB-02#J0 real image14971 RJK0305DPB-02#J0 real image14972
Same model may have multiple batches, images only for reference.
RJK0305DPB-02#J0 Real Image RJK0305DPB-02#J0 real image14971 RJK0305DPB-02#J0 real image14972
RJK0305DPB-02#J0 Real Image RJK0305DPB-02#J0 real image14971 RJK0305DPB-02#J0 real image14972
Same model may have multiple batches, images only for reference.

RJK0305DPB-02#J0

Part No RJK0305DPB-02#J0
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 30A LFPAK / Trans MOSFET N-CH Si 30V 30A 5-Pin(4+Tab) LFPAK T/R
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 30A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate Charge (Qg) (Maximum) @ Vgs 8nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 1250pF @ 10V
Vgs (Maximum) +16V, -12V
Rds On (Maximum) @ Id, Vgs 8 mOhm @ 15A, 10V
Mounting SMD
Manufacturer Package LFPAK
Package SC-100, SOT-669
Win Source Part Number 793213-RJK0305DPB-02#J0
Popularity Medium
Supply and Demand Status Limited
Family Name RJK0305DPB-02
Introduction Date January 06, 2015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian RJK0305DPB-02#J0 CAD Model

Description

The RJK0305DPB-02#J0 MOSFET manufactured by Renesas Electronics America is a high-performance device with a current rating of 30A (Ta).

  • Drain-Source Voltage: 30V
  • Package: LFPAK
  • Channel Type: N-channel
  • Gate Charge: 8nC @ 4.5V
  • Input Capacitance: 1250pF @ 10V
  • Rds On: 8 mOhm @ 15A, 10V
  • Application: discrete semiconductor
  • Drive Voltage: 4.5V and 10V
  • Halogen-Free: yes
  • ECCN: EAR99
  • Introduction Date: January 06, 2015
  • Estimated Discontinuation: 2022
