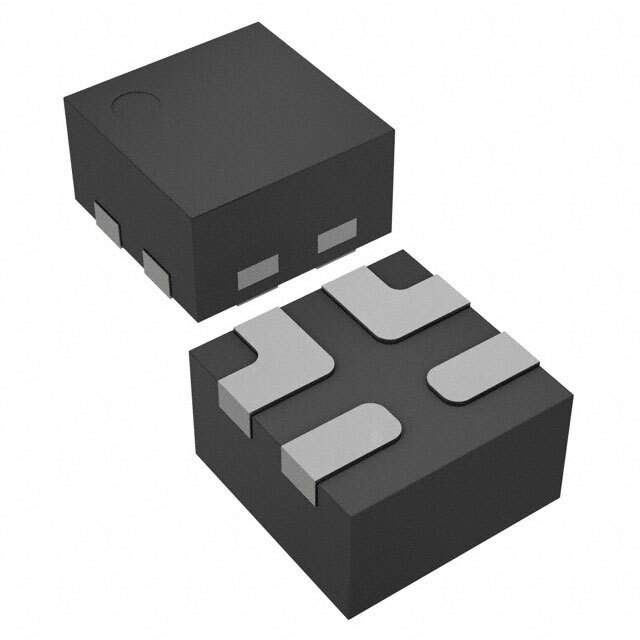

The SLG59M1557VTR is a high-efficiency, single-channel power load switch manufactured by Renesas Electronics (formerly Dialog Semiconductor). This load switch is designed to provide a controlled method of switching power to a load, offering features like over-voltage protection, over-current protection, and soft-start capabilities. It is commonly used in applications where power management and protection are critical.

Applications

• Power distribution in portable devices
• Hot-swap applications
• Solid-state drives (SSDs)
• USB power delivery
• Battery-powered systems

Features

• Low on-resistance (RDS(on)) for minimal power loss
• Integrated over-voltage protection (OVP)
• Integrated over-current protection (OCP)
• Soft-start feature to limit inrush current
• Enable/Disable control input
• Small form factor
• Thermal shutdown protection

Benefits

• Improved system reliability
• Reduced power consumption
• Protection against damage from over-voltage and over-current conditions
• Reduced inrush current during startup
• Simplified power management design
• Increased system efficiency

Additional Details

The SLG59M1557VTR load switch provides a compact and efficient solution for power management in various applications. The integrated protection features safeguard the load from damage due to over-voltage and over-current conditions, enhancing system reliability. The soft-start feature reduces inrush current, minimizing stress on the power supply and other components. Renesas' GreenPAK technology, which includes these load switches, allows for highly configurable power and signal management solutions. The 'VTR' at the end signifies that it is packaged on tape and reel for automated assembly lines. This particular part is often used to efficiently enable or disable sections of a circuit, adding safety and saving power.
