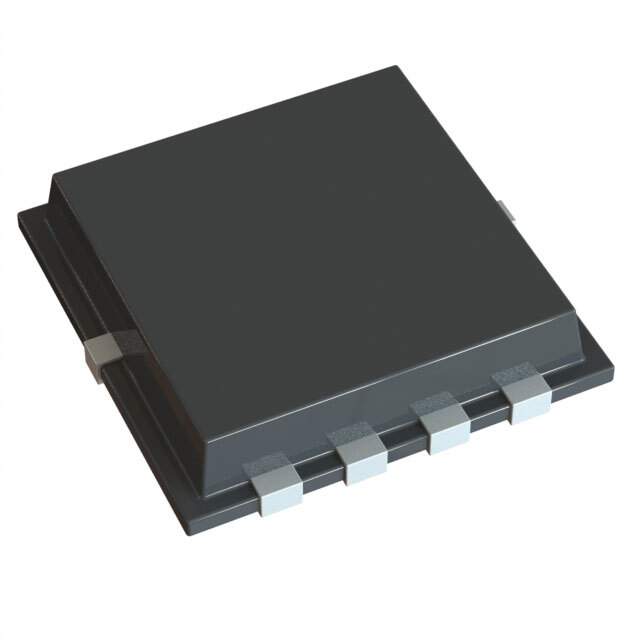

UPA2814T1S-E2-AT Real Image
Same model may have multiple batches, images only for reference.

UPA2814T1S-E2-AT

Part No UPA2814T1S-E2-AT
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 24A 8HWSON  /  P-Channel 30 V 24A (Tc) 1.5W (Ta) Surface Mount 8-HWSON (3.3x3.3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Renesas Electronics America Inc
Package Tape & Reel (TR)
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 7.8mOhm @ 24A, 5V
Gate Charge (Qg) (Max) @ Vgs 74 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2800 pF @ 10 V
Power Dissipation (Max) 1.5W (Ta)
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 8-HWSON (3.3x3.3)
Package / Case 8-PowerWDFN
Base Product Number UPA2814
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names -1161-UPA2814T1S-E2-ATCT
Standard Package 5,000
Win Source Part Number 1102459-UPA2814T1S-E2-AT
Ultra Librarian 3D Model Ultra Librarian UPA2814T1S-E2-AT CAD Model

Description

The UPA2814T1S-E2-AT is a P-channel MOSFET transistor manufactured by Renesas Electronics America Inc.

  • Drain to Source Voltage: 30V
  • Continuous Drain Current: 24A @ 25 degrees Celsius
  • Rds On (Max) @ Id, Vgs: 7.8mOhm @ 24A, 5V
  • Gate Charge: 74 nC @ 10V
  • Input Capacitance: 2800 pF @ 10V
  • Power Dissipation: 1.5W @ Ta
  • Package: 8-PowerWDFN
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 150 degrees Celsius
