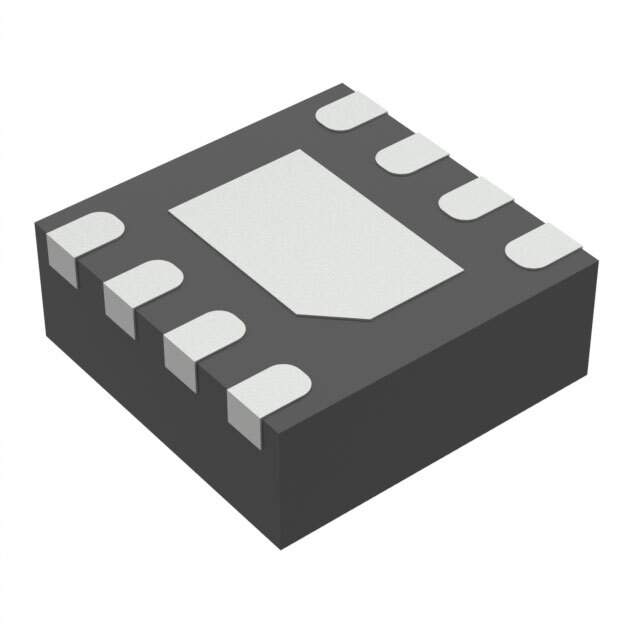

The Richtek USA Inc. RT9041E-12GQW is an integrated circuit that features a single regulator with adjustable (fixed) output type and enable, power good control features.

• Regulator Type: Single regulator with adjustable (fixed) output
• Output Current: 500mA
• Family: RT9041E
• Temperature Range: -40°C to 85°C (TA)
• Case/Package: 8-WDFN (2x2)
• Maximum Input Voltage: 5.5V
• Nominal Output Voltage (min/fixed): 0.8V (1.2V)
• Dropout Voltage-Max: 0.5V @ 500mA
• Operating Supply Current: 250μA
• Protection Features: Over Current, Over Temperature, and Under Voltage Lockout (UVLO)
• Packaging: Reel - TR
• Alternative Parts (Cross-Reference): RH1086BHK, HMC976LP3ETR, and HMC976LP3E
