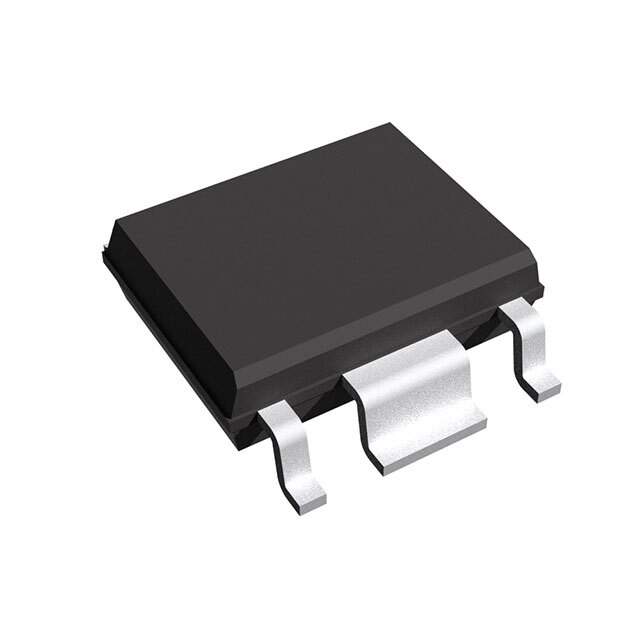

The R1172S331B-E2-F is a voltage regulator IC manufactured by Ricoh. It is a low-dropout (LDO) regulator designed for applications requiring a stable and efficient power supply. This IC is known for its small size, low current consumption, and high accuracy, making it suitable for portable devices and battery-powered applications.

Applications:

• Smartphones and Tablets: Power management for various components.
• Wearable Devices: Smartwatches, fitness trackers, and other low-power devices.
• IoT Devices: Sensors, actuators, and communication modules.
• Portable Audio Players: Power supply for audio processing and memory.
• Wireless Communication Devices: Bluetooth modules, Wi-Fi modules.

Features:

• Low Dropout Voltage: Ensures stable output voltage even with a low input voltage.
• High Output Voltage Accuracy: Provides a precise and stable output voltage.
• Low Quiescent Current: Minimizes power consumption in standby mode.
• Overcurrent Protection: Protects the IC and connected components from excessive current.
• Small Package Size: Allows for compact designs.
• Thermal Shutdown Protection: Prevents damage from overheating.

Benefits:

• Extended Battery Life: Low quiescent current and high efficiency contribute to longer battery life in portable devices.
• Stable Power Supply: High output voltage accuracy ensures reliable operation of connected components.
• Compact Design: Small package size enables smaller and more portable devices.
• Enhanced System Reliability: Overcurrent and thermal shutdown protection prevent damage and improve system reliability.
• Simplified Design: Integrated features reduce the need for external components, simplifying circuit design.

Additional Details:

The R1172S331B-E2-F operates with an input voltage range typically up to 6V. It offers a fixed output voltage of 3.3V with high accuracy. The low dropout voltage characteristic ensures that the regulator can maintain a stable output even when the input voltage is close to the output voltage. The quiescent current is typically in the microampere range, making it suitable for low-power applications. It is commonly available in a small package such as DFN or SOT packages.
