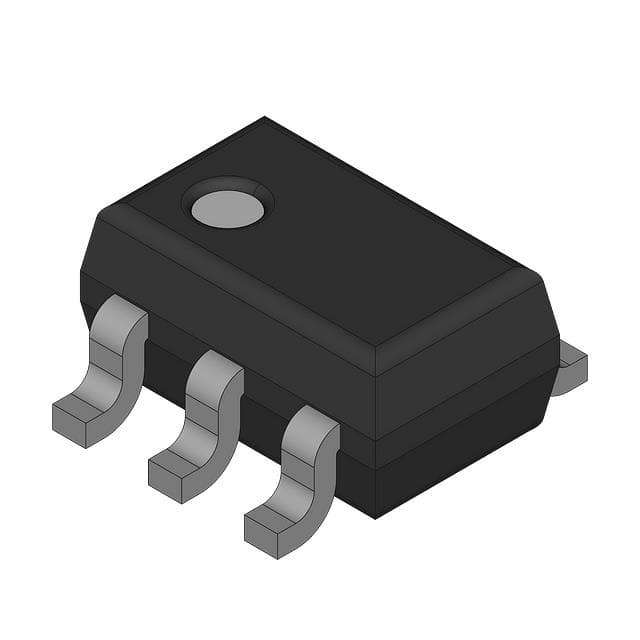

The R5460N235AA-TR-FE is a voltage regulator IC manufactured by Rochester Electronics. This is a high-voltage tolerant LDO regulator that features low current consumption and a small package. It's designed for applications where stable voltage regulation is required from a relatively high input voltage.

Applications

• Automotive applications: Regulates voltage in various automotive electronic control units (ECUs) and sensor systems.
• Industrial control systems: Provides stable power to sensors, microcontrollers, and communication modules in industrial environments.
• Power adapters and chargers: Used in AC/DC adapters and battery chargers to provide a regulated output voltage.
• White goods: Regulates power in appliances such as refrigerators, washing machines, and dishwashers.
• Metering devices: Provides stable power to electronic meters for accurate measurement and data logging.

Features

• High Input Voltage Tolerance: Can withstand relatively high input voltages without damage, increasing system robustness.
• Low Quiescent Current: Minimizes power consumption, extending battery life or reducing overall power usage.
• High Output Voltage Accuracy: Provides a precise output voltage for stable operation of connected components.
• Overcurrent Protection: Protects the regulator and connected circuitry from damage due to excessive current.
• Thermal Shutdown Protection: Prevents damage from overheating by shutting down the regulator when the temperature exceeds a safe limit.
• Small Package Size: Allows for compact designs in various applications.

Benefits

• Robustness in High-Voltage Environments: The high input voltage tolerance ensures reliable operation even with voltage fluctuations.
• Energy Efficiency: Low quiescent current minimizes power waste, contributing to energy savings.
• Stable Performance: Accurate output voltage regulation ensures stable and reliable operation of connected components.
• Enhanced System Reliability: Built-in protection features prevent damage from overcurrent and overheating.
• Compact Design: Small package size allows for use in space-constrained applications.

Additional Details

The R5460N235AA-TR-FE is a 2.35V fixed output LDO regulator. The specific input voltage range depends on the datasheet, but it is designed to tolerate higher voltages than standard LDOs. It is available in a small package. It typically operates in a temperature range of -40°C to +85°C. The overcurrent protection is designed to prevent damage in the event of a short circuit or overload condition. The datasheet will contain detailed electrical characteristics, including the maximum input voltage, output current capabilities, and thermal resistance. It complies with RoHS standards.
