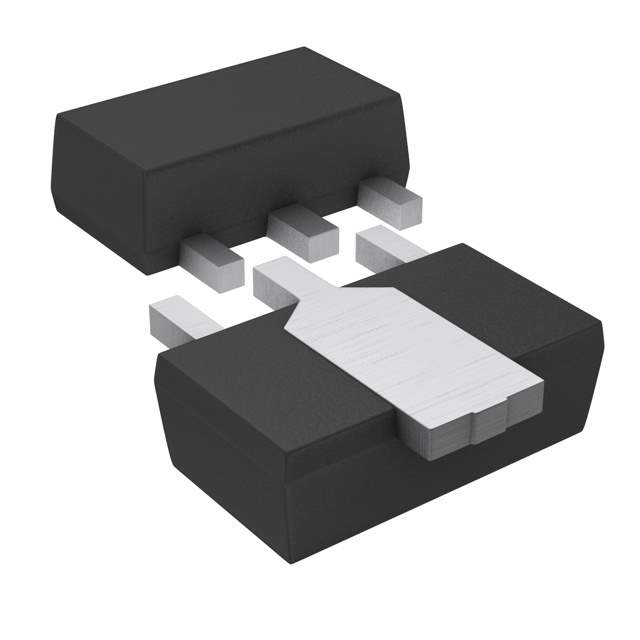

2SCR514PT100

Name: 2SCR514PT100
Brand: Rohm Semiconductor
SKU: 762757
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	2SCR514PT100
Manufacturer	Rohm Semiconductor
Catalog	Transistors (BJT) - Single
Description	TRANS NPN 80V 0.7A SOT-89
Datasheet	2SCR514PT100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Rohm Semiconductor
Packaging	Reel package
Transistor Type	NPN
Current - Collector (Ic) (Maximum)	700mA
Voltage - Collector Emitter Breakdown (Maximum)	80V
Vce Saturation (Maximum) @ Ib, Ic	300mV @ 15mA, 300mA
Current - Collector Cutoff (Maximum)	1μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce	120 @ 100mA, 3V
Power - Max	2W
Frequency - Transition	320MHz
Operating Temperature Range	150°C (TJ)
Mounting	SMD
Package	TO-243AA
Manufacturer Package	MPT3
Win Source Part Number	762757-2SCR514PT100
Popularity	Medium
Supply and Demand Status	Balance
Family Name	2SCR514P
Introduction Date	December 08, 2009
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2021
Ultra Librarian 3D Model	Ultra Librarian 2SCR514PT100 CAD Model

Alternative Products

Description

The Rohm Semiconductor 2SCR514PT100 is a NPN transistor.

Maximum Power: 2W
Frequency Transition: 320MHz
Current collector (Ic) maximum: 700mA
Voltage collector emitter breakdown: 80V
Package: TO-243AA
Mounting: SMD
DC Current Gain (hFE) minimum: 120 @ 100mA and 3V
Vce saturation maximum @ Ib, Ic: 300mV @ 15mA and 300mA
Estimated EOL Date: 2021
