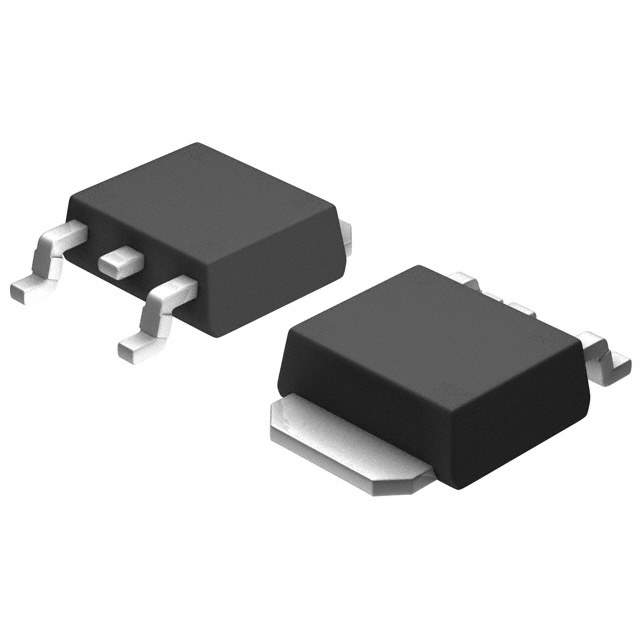

The BA05CC0FP is a fixed output, positive linear voltage regulator from Rohm Semiconductor. It provides a stable 5V output voltage with a maximum output current of 1A, making it suitable for a wide range of electronic applications.

Applications

• Power supplies for microcontrollers.
• Voltage regulation for sensors and transducers.
• Powering logic circuits.
• Battery-powered devices.
• Industrial control systems.

Features

• Fixed output voltage: 5V.
• Output current: Up to 1A.
• Low dropout voltage: Ensures regulation with low input voltage.
• Built-in overcurrent protection: Protects the regulator and load from damage.
• Built-in thermal shutdown protection: Prevents overheating.
• Short-circuit protection: Safeguards the regulator and connected circuits.
• TO-252 package: Provides good thermal dissipation.
• Compact size.

Benefits

• Stable output voltage: Provides a reliable and consistent power supply.
• Overcurrent protection: Prevents damage from excessive current draw.
• Thermal shutdown protection: Protects the regulator from overheating.
• Simple to use: Requires minimal external components.
• Compact size: Suitable for space-constrained applications.
• Cost-effective: Provides a good balance of performance and cost.

Additional Details

The BA05CC0FP features a low dropout voltage, enabling it to maintain regulation even when the input voltage is close to the output voltage. It incorporates overcurrent protection, thermal shutdown protection, and short-circuit protection, ensuring robust operation and preventing damage in fault conditions. The TO-252 package facilitates heat dissipation, allowing for operation at higher output currents. Proper heatsinking may be required depending on the operating conditions. Input and output capacitors are recommended for stable operation. The input voltage range is typically 7V to 25V. Refer to the Rohm Semiconductor datasheet for complete specifications and application guidelines.
