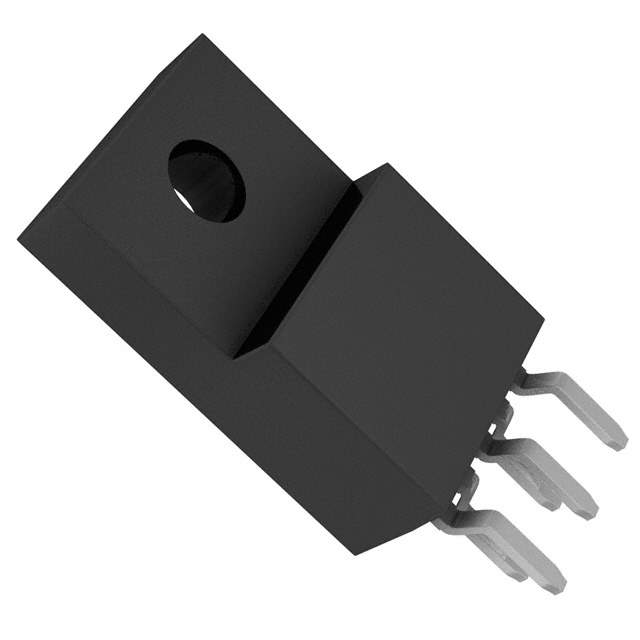

BD00C0AWCP-V5E2 Real Image
Same model may have multiple batches, images only for reference.

BD00C0AWCP-V5E2

Part No BD00C0AWCP-V5E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN POS ADJ 1A TO220CP-V5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 26.5V
Voltage - Output (Min/Fixed) 3V
Maximum Output Voltage 15V
Maximum Dropout Voltage 0.5V at 500mA
Current - Output 1A
Current - Quiescent (Iq) 1mA
PSRR 55dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-5 Full Pack (Formed Leads)
Supplier Device Package TO220CP-V5
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813110-BD00C0AWCP-V5E2
Ultra Librarian 3D Model Ultra Librarian BD00C0AWCP-V5E2 CAD Model

Description

The BD00C0AWCP-V5E2 is a through-hole type voltage regulator from Rohm Semiconductor.

  • Current Output: 1A
  • Regulators: 1
  • Output Type: Adjustable
  • Output Configuration: Positive
  • Output Voltage (Min/Fixed): 3V
  • Maximum Input Voltage: 26.5V
  • PSRR: 55dB (120Hz)
  • Maximum Output Voltage: 15V
  • Protection: Overcurrent, Overtemperature
  • Temperature Range: -40°C to 150°C
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
  • Dropout Voltage: 0.5V @ 500mA
  • Quiescent Current: 1mA
