The DTA123YCAT116 is a digital transistor (also known as a Bias Resistor Transistor or BRT) manufactured by Rohm Semiconductor. It integrates a transistor with built-in bias resistors, simplifying circuit design and reducing component count. This transistor is typically used in switching applications where a logic-level input signal controls the transistor's on/off state.

Applications:

• Switching Circuits: Used as a switch to control various loads, such as LEDs, relays, and small motors.
• Inverter Circuits: Employed in simple inverter circuits to invert digital signals.
• Level Shifters: Utilized to shift voltage levels between different logic families.
• Digital Control: Integrated into digital control systems for switching and amplification.
• General-Purpose Amplification: Can be used for general-purpose amplification in low-power applications.

Features:

• Built-in Bias Resistors: Simplifies circuit design by eliminating the need for external bias resistors.
• NPN Transistor: NPN transistor configuration.
• Low Input Current: Requires a low input current to switch on.

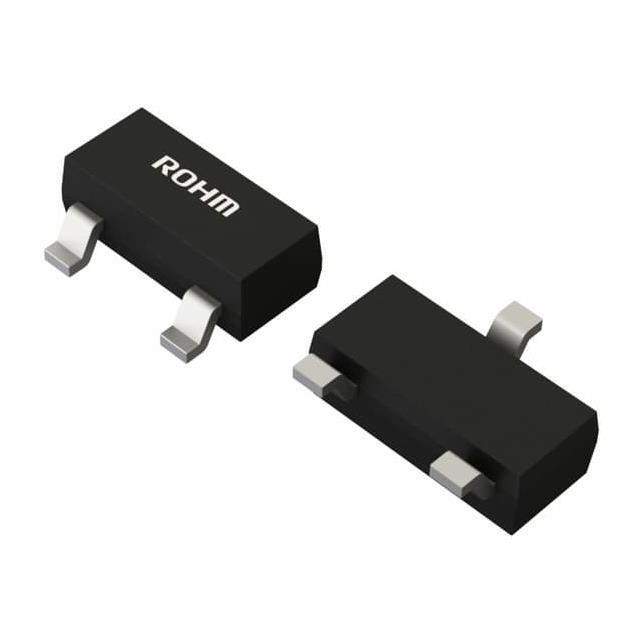

• Surface Mount Package: Available in a small surface mount package for space-constrained applications.
• RoHS Compliant: Compliant with RoHS environmental standards.

Benefits:

• Simplified Circuit Design: Reduces component count and simplifies circuit layout.
• Reduced Cost: Lowers overall system cost by eliminating external resistors.
• Improved Reliability: Eliminates the variability associated with discrete resistors.
• Space Saving: Compact surface mount package saves valuable board space.
• Easy to Use: Simple to use and integrate into various circuits.

Additional Details:

The DTA123YCAT116 includes a 2.2kΩ input resistor and a 4.7kΩ resistor between base and emitter. Designers should consider the transistor's voltage and current ratings when selecting it for a specific application. The input signal should be compatible with the transistor's input voltage requirements. Always refer to the manufacturer's datasheet for detailed specifications and application guidelines.
