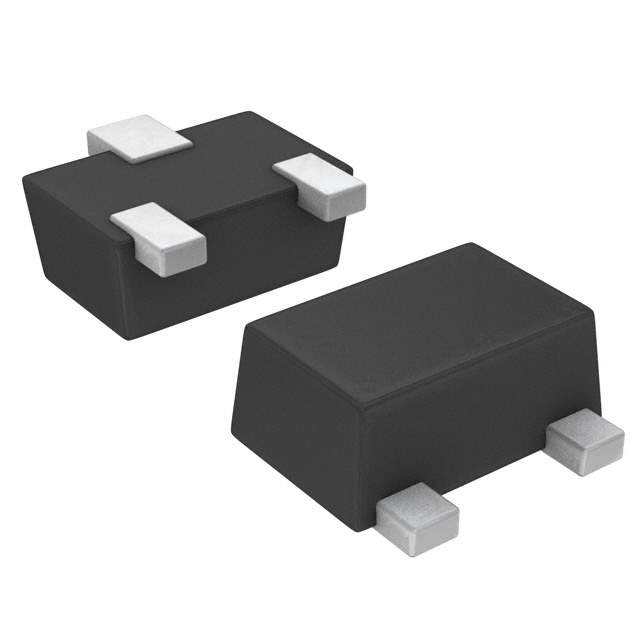

The DTD743EM is a digital transistor (BJT) manufactured by Rohm Semiconductor. As a pre-biased transistor, it incorporates internal resistors to streamline circuit designs and minimize the number of external components needed.

Applications:

• Digital circuit applications
• Inverter circuits
• Driver circuits
• Switching circuits
• Load switches

Features:

• Integrated bias resistors (R1 = 4.7kΩ, R2 = 47kΩ)
• Reduces external component count
• Simplified circuit design
• Surface Mount Device (SMD)
• Compact package size

Benefits:

• Saves board space
• Lowers assembly costs
• Enhances circuit reliability
• Reduces design time and effort
• Suitable for automated assembly

Technical Specifications:

The DTD743EM is an NPN transistor with built-in bias resistors. The input resistor (R1) is 4.7kΩ, and the base-emitter resistor (R2) is 47kΩ. It is designed for surface mount applications. Key electrical specifications include collector-emitter voltage (VCEO), collector current (IC), and power dissipation. For precise voltage, current, and temperature ratings, consult the official Rohm Semiconductor datasheet.

The built-in resistors provide stable biasing, removing the need for external components. This characteristic makes the DTD743EM ideal for space-constrained applications and general-purpose digital circuits requiring switching and amplification.
