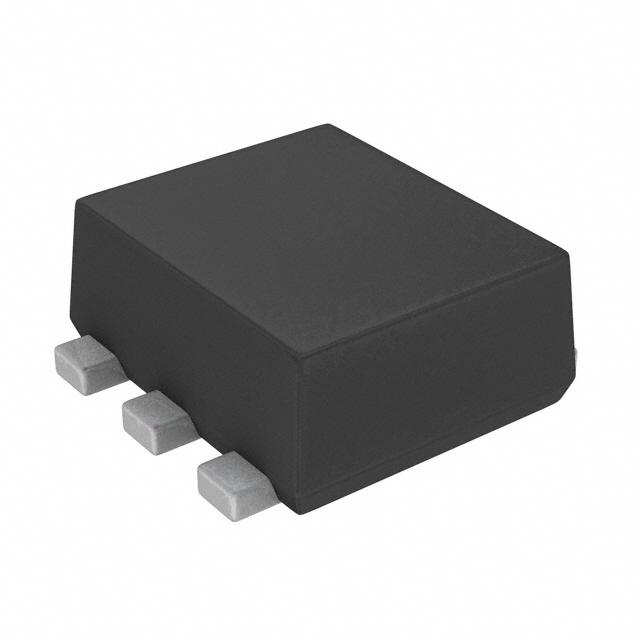

Same model may have multiple batches, images only for reference.
RAL045P01TCR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RAL045P01TCR

Part No RAL045P01TCR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 4.5A TUMT6
Datasheet
RAL045P01TCR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 40nC @ 4.5V
Max Input Capacitance 4200pF @ 6V
Maximum Gate-Source Voltage -8V
Power Dissipation (Max) 1W (Ta)
Maximum Rds On at Id,Vgs 30 mOhm @ 4.5A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TUMT6
Dimension 6-SMD, Flat Leads
Win Source Part Number 210535-RAL045P01TCR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RAL045P01TCR CAD Model

Description

The Rohm Semiconductor RAL045P01TCR is a P-channel MOSFET transistor that comes in a TUMT6 package.

  • Drain-Source Breakdown Voltage: 12V
  • Maximum Continuous Drain Current: 4.5A @ 25°C
  • Maximum Rds On: 30 mOhm @ 4.5A and 4.5V
  • Operating Temperature Range: 150°C
  • Part Status: Active
  • Market Popularity: Medium
  • Supply and Demand Status: Balanced
