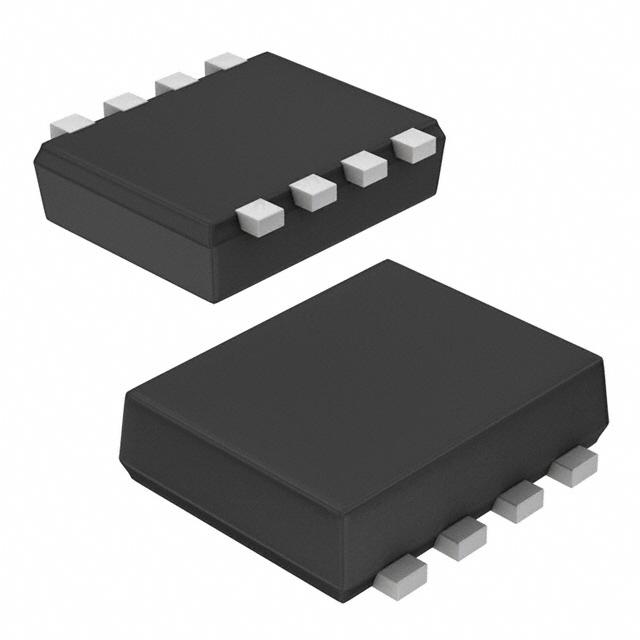

Same model may have multiple batches, images only for reference.

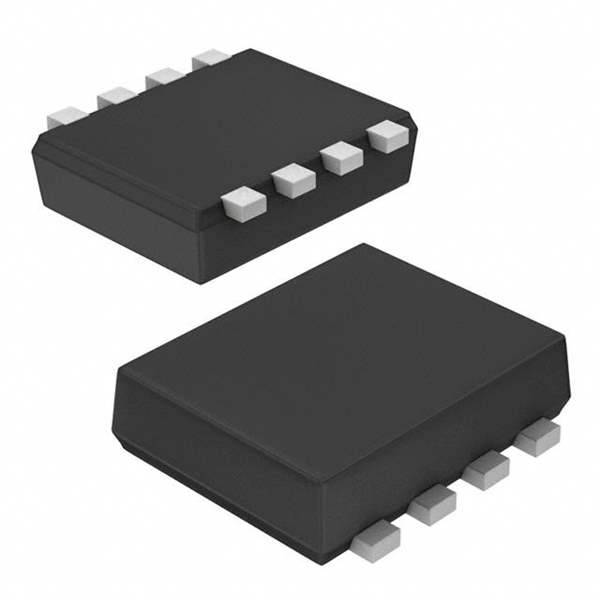

RQ1A060ZPTR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RQ1A060ZPTR

Part No RQ1A060ZPTR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 6A TSMT8
Datasheet
RQ1A060ZPTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 34nC @ 4.5V
Max Input Capacitance 2800pF @ 6V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 700mW (Ta)
Maximum Rds On at Id,Vgs 23 mOhm @ 6A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TSMT8
Dimension 8-SMD, Flat Lead
Win Source Part Number 046378-RQ1A060ZPTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RQ1A060ZPTR CAD Model

Description

The RQ1A060ZPTR is a P-channel MOSFET manufactured by Rohm Semiconductor.

  • Application: discrete semiconductor products
  • Mounting: TSMT8 package
  • Drain-Source Breakdown Voltage: 12V
  • Continuous Drain Current: 6A @ 25°C
  • Maximum Gate-Charge: 34nC
  • Input Capacitance: 2800pF
  • Maximum Rds On: 23 mOhm @ 6A, 4.5V
  • Gate-Source Threshold Voltage: 1V @ 1mA
  • Maximum Gate-Source Voltage: ±10V
  • Power Dissipation: 700mW (Ta)
  • Temperature Range: up to 150°C (TJ)
  • Supply and Demand Status: balanced
