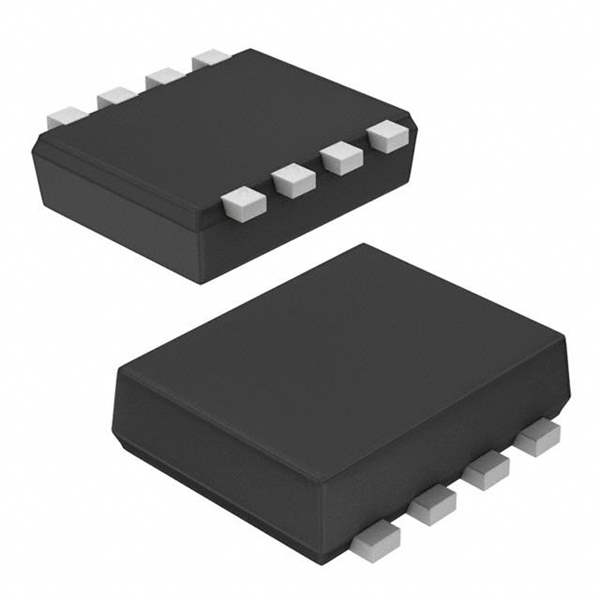

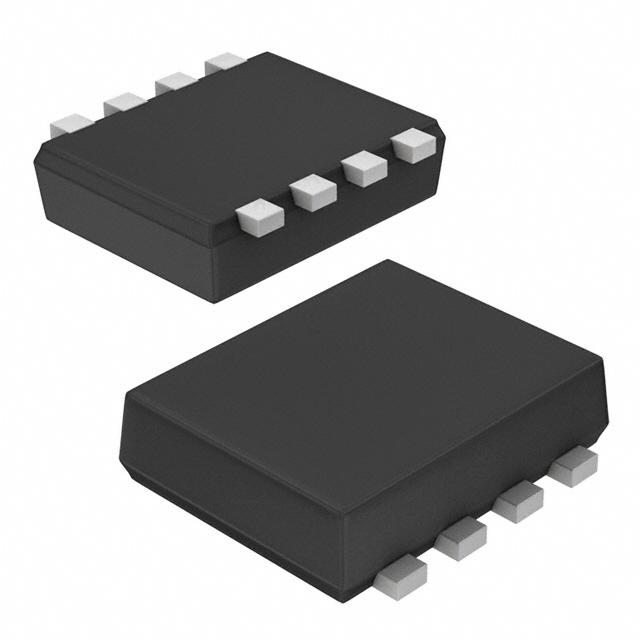

RQ1A070ZPTR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RQ1A070ZPTR

Part No RQ1A070ZPTR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 7A TSMT8
Datasheet
RQ1A070ZPTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 58nC @ 4.5V
Max Input Capacitance 7400pF @ 6V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 700mW (Ta)
Maximum Rds On at Id,Vgs 12 mOhm @ 7A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TSMT8
Dimension 8-SMD, Flat Lead
Win Source Part Number 046379-RQ1A070ZPTR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RQ1A070ZPTR CAD Model

Description

The Rohm Semiconductor RQ1A070ZPTR is a P-channel MOSFET transistor with a maximum power dissipation of 700mW.

  • Application: discrete semiconductor products
  • Popularity Rating: medium
  • Maximum Rds On: 12 mOhm @ 7A and 4.5V
  • Gate-Source Threshold Voltage: 1V @ 1mA
