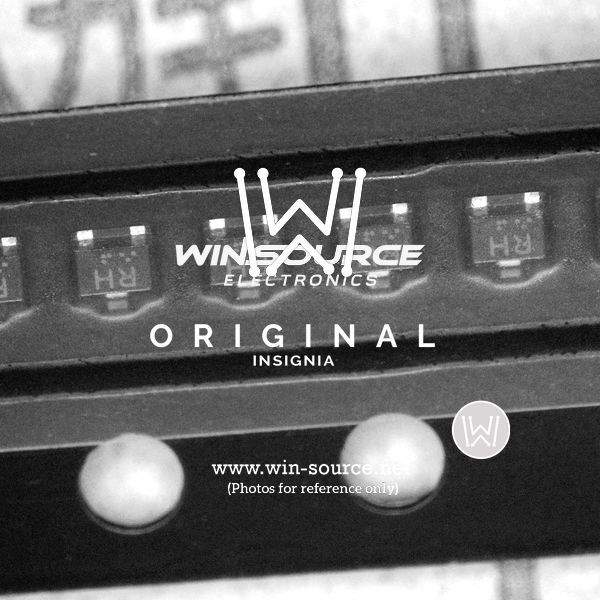

RUC002N05T116 Real Image RUC002N05T116 real image5235
Same model may have multiple batches, images only for reference.
RUC002N05T116 Real Image RUC002N05T116 real image5235
RUC002N05T116 Real Image RUC002N05T116 real image5235
Same model may have multiple batches, images only for reference.

RUC002N05T116

Part No RUC002N05T116
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 50V 0.2A SST3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 50V
Continuous Drain Current at 25°C 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Input Capacitance 25pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 200mW (Ta)
Maximum Rds On at Id,Vgs 2.2 Ohm @ 200mA, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SST3
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 027648-RUC002N05T116
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian RUC002N05T116 CAD Model

Description

The Rohm Semiconductor 310300 is an N-channel MOSFET with a drain-source breakdown voltage of 50V and a continuous drain current of 200mA @ 25°C.

  • Maximum Rds On: 2.2 Ohm @ 200mA and 4.5V
  • Device Use: Designed for use in discrete semiconductor products
  • Gate-Source Threshold Voltage: 1V @ 1mA
  • Maximum Input Capacitance: 25pF @ 10V
  • Maximum Gate-Source Voltage: ±8V
  • Supply and Demand: Sufficient
  • Package: Each package contains 3k pcs
