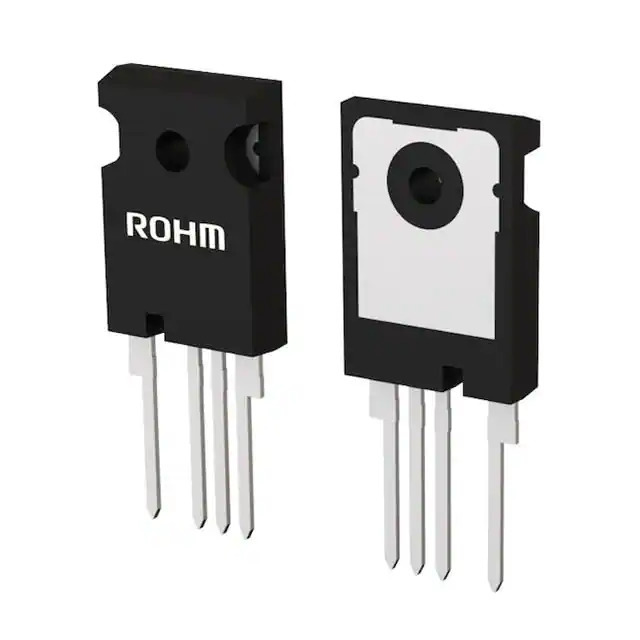

Same model may have multiple batches, images only for reference.

SCT4062KRHRC15

Name: SCT4062KRHRC15
Brand: Rohm Semiconductor
SKU: 1355202
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SCT4062KRHRC15
Manufacturer	Rohm Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	1200V, 26A, 4-PIN THD, TRENCH-ST / N-Channel 1200 V 26A (Tc) 115W Through Hole TO-247-4L
Datasheet	SCT4062KRHRC15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Rohm Semiconductor
Series	Automotive, AEC-Q101
Package	Tube
Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	18V
Rds On (Max) @ Id, Vgs	81mOhm @ 12A, 18V
Vgs(th) (Max) @ Id	4.8V @ 6.45mA
Gate Charge (Qg) (Max) @ Vgs	64 nC @ 18 V
Vgs (Max)	+21V, -4V
Input Capacitance (Ciss) (Max) @ Vds	1498 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	115W
Temperature Range - Operating	175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1355202-SCT4062KRHRC15
Ultra Librarian 3D Model	Ultra Librarian SCT4062KRHRC15 CAD Model

Alternative Products

Description

The SCT4062KRHRC15 is a SiCFET (Silicon Carbide) MOSFET manufactured by Rohm Semiconductor. It belongs to the automotive series and is qualified to AEC-Q101 standards.

FET Type: MOSFET N-Channel SiCFET
Technology: SiC
Vdss: 1200V
Id @ 25°C: 26A
Power Dissipation (Max): 115W
Qg @ Vgs: 64nC @ 18V
Rds On (Max) @ Id, Vgs: 81mOhm @ 12A
Vgs: +21V/-4V
REACH SVHC Status: Unaffected
ECCN: EAR99
