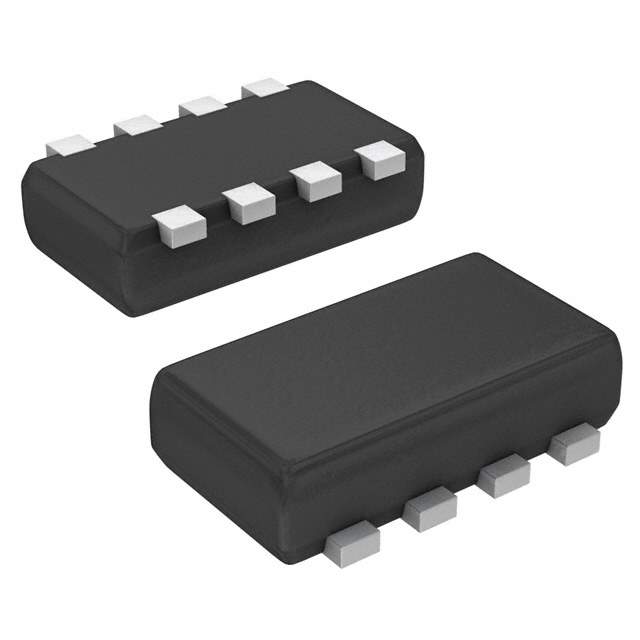

The Rohm Semiconductor TT8J2TR is a 2 P-channel (dual) MOSFET array with a logic level gate.

• Drain-to-Source Voltage (Vdss): 30V
• Continuous Drain Current (Id): 2.5A @ 25 degrees Celsius
• Rds On (Max): 84mOhm @ 2.5A and 10V
• Vgs(th) (Max): 2.5V @ 1mA
• Gate Charge (Qg) (Max): 4.8nC @ 5V
• Input Capacitance (Ciss) (Max): 460pF @ 10V
• Power Max: 1.25W
• Packaging: Tape and reel
• Standard Package: 3,000
• RoHS: Compliant
• ECCN: EAR99
• Maximum Operating Temperature: 150 degrees Celsius
• Minimum Operating Temperature: -55 degrees Celsius
